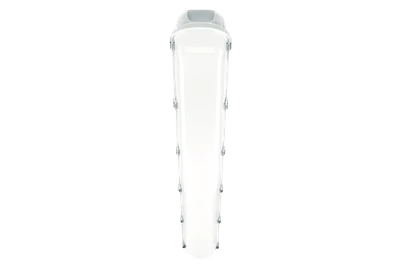

LED Waterproof batten Julie 1800mm IP65 76W 8600lm 4000K
Part Number:
2501139807
MPN:
96631143
- Product Type:
- Non-Corrosives
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
An IP65 rated LED luminaire for high quality low energy lighting in wet, dusty environments. High quality opal polycarbonate (UV stabilised) diffuser ensures uniform lighting without visible spots. High efficacy, up to 50% energy saving compared with T8 fluorescent. The traditional design gives an aesthetically pleasing appearance – ideal for point for point replacement on refurbishment projects. Body: polycarbonate Diffuser: opal polycarbonate (UV stabilised) Brackets: stainless steel Weight: 2,2 kg
- · Rated luminous flux (IEC 62722-2-1): 8600
- · Colour Temperature: 4000
- · Protection Class: I
- · Degree of protection (IP): IP65
- · ENEC certified driver
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Type of grid | None |
|---|---|
| Housing colour | Grey |
| Housing material | Plastic |
| Colour consistency (McAdam ellipse) | SDCM4 |
| Cover material | Plastic opal |
| Colour rendering index (CRI/Ra) | 80-89 |
| Impact resistance (IK rating) | IK08 |
| Colour of light | White |
| Control gear | LED driver constant current |
| Protection class according to IEC 61140 | I |
| Photobiological safety according to EN 62471 | RG0 |
| Filament test according to IEC 60695-2-11 | 850 C - 30 s |
| Colour temperature switchable | No |
| Light distribution | Symmetric |
| Lumen setting adjustable | No |
| Voltage type | AC |
| Light outlet | Direct |
| Light source type | LED non-replaceable |
| Width | 103 mm |
| Length | 1800 mm |
| Power factor | 0.9 |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Maximum system power | 76 W |
| Recess height/depth | - mm |
| Recess length | - mm |
| Number of lamps | 1 |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Flickering value Pst LM | - |
| Stroboscope effect value SVM | - |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance (35,000 h at 25 °C) | 75 % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | 70 % |
| Max. number of luminaires per miniature circuit breaker B16 | 30 |
| Max. number of luminaires per miniature circuit breaker C16 | 35 |
| Unified Glare Rating (UGR) | 25 |
| Conductor cross section | - mm² |
| Recess width | - mm |
| Height/depth | 78 mm |
| Number of poles | - |
| Recess diameter | - mm |
| Outer diameter | - mm |
| Lamp power | - W |
|---|---|
| Rated ambient temperature acc. IEC62722-2-1 | - °C |
| Nominal voltage | 220 - 240 V |
| Nominal current | - - - mA |
| Colour temperature | 4000 - 4000 K |
| Light source included | Yes |
| Suitable for ceiling mounting | Yes |
| Luminaire may be covered with thermally insulating material | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | Yes |
| Suitable for light line configuration | No |
| Suitable for surface mounting | Yes |
| Control gear included | Yes |
| Suitable for recessed mounting | No |
| Suitable for emergency lighting | No |
| With movement sensor | No |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Constant luminous flux control | No |
| Dimming 0-10 V | No |
| Dimming DALI | No |
| Dimming 1-10 V | No |
| IFTTT support available | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming potentiometer (integrated) | No |
| With air slots | No |
| Fit for workplace acc. EN 12464-1 | No |
| Dimming DMX | No |
| Dimming leading edge | No |
| Dimming trailing edge | No |
| Dimming programmable | No |
| Dimming RF | No |
| Replaceable control gear | Yes |
| Dimming DSI | No |
| Bluetooth operated | No |
| Dimming DALI-2 | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Dimming with push-button | No |
| Dimming Zigbee | No |
| Dimming touch and dim | No |
