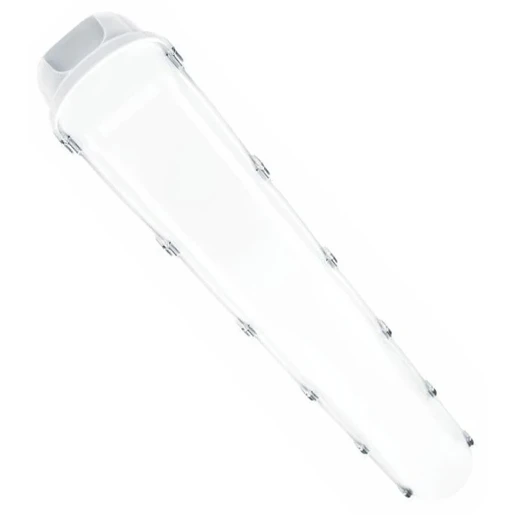

LED Waterproof batten Julie 1500mm IP65 55W 6300lm 4000K
Part Number:
2500931093
MPN:
96665580
- Product Type:
- Non-Corrosives
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
An IP65 rated LED luminaire for high quality low energy lighting in wet, dusty environments. High quality opal polycarbonate (UV stabilised) diffuser ensures uniform lighting without visible spots. High efficacy, up to 60% energy saving compared with T8 fluorescent. The traditional design gives an aesthetically pleasing appearance – ideal for point for point replacement on refurbishment projects. Body: polycarbonate Diffuser: opal polycarbonate (UV stabilised) Brackets: stainless steel Weight: 1.95 kg
- · Rated luminous flux (IEC 62722-2-1): 6300
- · Colour Temperature: 4000
- · Protection Class: I
- · Degree of protection (IP): IP65
- · ENEC certified driver
- · IK08 rated
- · IP65; dust-tight and water resistant
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Type of grid | None |
|---|---|
| Housing colour | Grey |
| Housing material | Plastic |
| Colour consistency (McAdam ellipse) | SDCM4 |
| Colour rendering index (CRI/Ra) | 80-89 |
| Cover material | Plastic opal |
| Colour of light | White |
| Impact resistance (IK rating) | IK08 |
| Control gear | LED driver constant current |
| Protection class according to IEC 61140 | I |
| Photobiological safety according to EN 62471 | RG0 |
| Filament test according to IEC 60695-2-11 | 850 C - 30 s |
| Colour temperature switchable | No |
| Light distribution | Symmetric |
| Lumen setting adjustable | No |
| Light outlet | Direct |
| Voltage type | AC |
| Light source type | LED non-replaceable |
| Outer diameter | - mm |
| Conductor cross section | - mm² |
| Width | 103 mm |
| Length | 1532 mm |
| Power factor | 0.9 |
| Maximum system power | 55 W |
| Number of lamps | 1 |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | 70 % |
| Max. number of luminaires per miniature circuit breaker C16 | 50 |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Recess length | - mm |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Max. number of luminaires per miniature circuit breaker B16 | 50 |
| Lumen maintenance (35,000 h at 25 °C) | 75 % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Recess height/depth | - mm |
| Flickering value Pst LM | - |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Stroboscope effect value SVM | - |
| Unified Glare Rating (UGR) | 25 |
| Height/depth | 78 mm |
| Recess width | - mm |
| Number of poles | - |
| Recess diameter | - mm |
| Lamp power | - W |
|---|---|
| Colour temperature | 4000 - 4000 K |
| Nominal current | - - - mA |
| Nominal voltage | 220 - 240 V |
| Rated ambient temperature acc. IEC62722-2-1 | - °C |
| Suitable for suspended mounting | No |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | Yes |
| Suitable for recessed mounting | No |
| Light source included | Yes |
| With movement sensor | No |
| Suitable for emergency lighting | No |
| With light sensor | No |
| Suitable for light line configuration | No |
| Control gear included | Yes |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | Yes |
| Compatible with Amazon Alexa | No |
| Dimming DALI-2 | No |
| Replaceable control gear | Yes |
| Dimming manufacturer's proprietary system | No |
| Dimming DSI | No |
| Dimming potentiometer (integrated) | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Bluetooth operated | No |
| Dimming 1-10 V | No |
| Dimming 0-10 V | No |
| Constant luminous flux control | No |
| Dimming touch and dim | No |
| Fit for workplace acc. EN 12464-1 | No |
| With air slots | No |
| Luminaire may be covered with thermally insulating material | No |
| Dimming Zigbee | No |
| IFTTT support available | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming with push-button | No |
| Dimming mains voltage modulation | No |
| Dimming leading edge | No |
| Dimming trailing edge | No |
