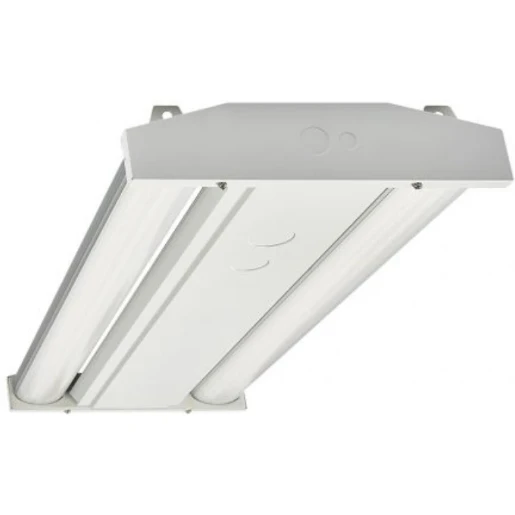

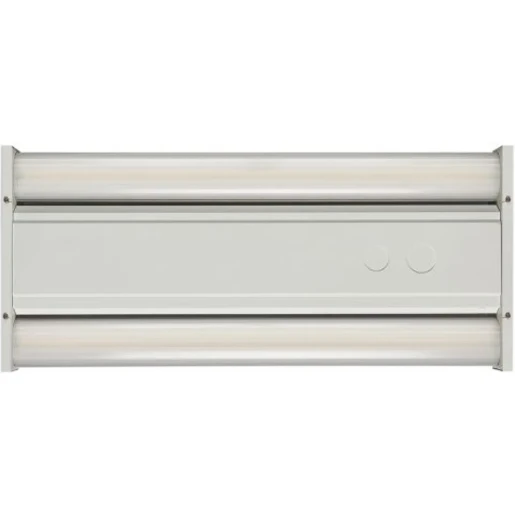

Lowbay 150W 4000K White
Part Number:
2501234644
MPN:
LB15040
- Product Type:
- Lowbays
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Collingwood’s history of quality and innovation has led us to extend into the industrial market. With a new range of quality looking low bay lights offering a colour temperature of 4000K, making it ideal for industrial use with high ceilings. This range has high efficacies and 5-year warranty providing low running costs over the extended lifetimes of the product. With a choice of optional beam angles and emergency, the microwave sensor accessory can provide energy and cost savings, by only switching on when it detects movement.
- · A range of mounting options available allowing excellent flexibility on installation
- · Specifically designed for use in aisle spaces
- · A range of accessories available
- · Highly efficient, up to 150lm/W
- · 1-10V, PWM and resistor dimmable as standard, 3-in-1
- · Emergency lumens output: 640lm
- · Surge Protection L/N-PE = 10KV L-N = 6KV
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |

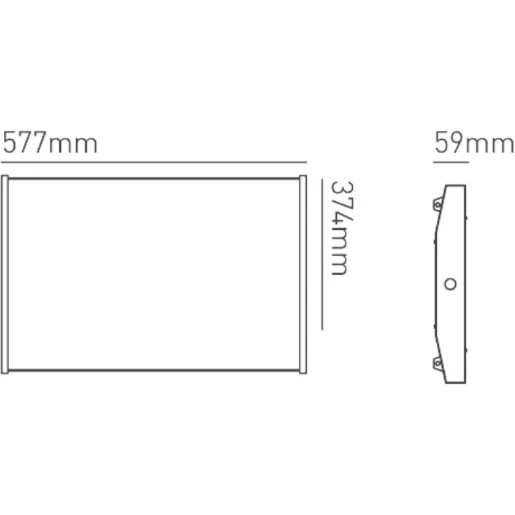

| Width | 254 mm |
|---|---|
| Length | 577 mm |
| Recess length | - mm |
| Number of lamps | 1 |
| Maximum system power | 150 W |
| Power factor | 9 |
| Recess height/depth | - mm |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Conductor cross section | - mm² |
| Recess width | - mm |
| Recess diameter | - mm |
| Number of poles | - |
| Outer diameter | - mm |
| Height/depth | 59 mm |
| Lamp power | - W |
| Nominal voltage | 220 - 240 V |
| Colour temperature | 4000 - 4000 K |
| Rated ambient temperature acc. IEC62722-2-1 | - - 40 °C |
| With light sensor | No |
| With movement sensor | No |
| Suitable for suspended mounting | Yes |
| Light source included | Yes |
| Luminaire may be covered with thermally insulating material | No |
| Suitable for recessed mounting | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Control gear included | Yes |
|---|---|
| Fit for workplace acc. EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| IFTTT support available | No |
| Dimming leading edge | No |
| Dimming Zigbee | No |
| Suitable for ceiling mounting | Yes |
| Dimming trailing edge | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Dimming manufacturer's proprietary system | No |
| Dimming potentiometer (integrated) | No |
| Dimming DALI-2 | No |
| Compatible with Apple HomeKit | No |
| Dimming 1-10 V | Yes |
| Dimming 0-10 V | No |
| Dimming DALI | No |
| Dimming programmable | No |
| Bluetooth operated | No |
| Dimming with push-button | No |
| Dimming DSI | No |
| Dimming DMX | No |
| Dimming touch and dim | No |
| Dimming RF | No |
| With air slots | No |
| Dimming mains voltage modulation | No |
