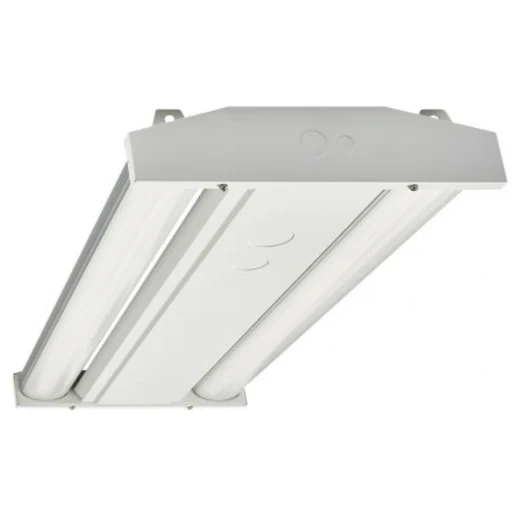

Low Bay Emergency 4000K Beam Ang 120 150W White 22000Lm IP40 Cri80
Part Number:
2501294130
MPN:
LB15040E
- Product Type:
- Lowbays
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Technical Data Sheet
Product Details
Product Details
Collingwood’s history of quality and innovation has led us to extend into the industrial market. With a new range of quality looking low bay lights offering a colour temperature of 4000K, making it ideal for industrial use with high ceilings. This range has high efficacies and 5-year warranty providing low running costs over the extended lifetimes of the product. With a choice of optional beam angles and emergency, the microwave sensor accessory can provide energy and cost savings, by only switching on when it detects movement.
- · A range of mounting options available allowing excellent flexibility on installation
- · Specifically designed for use in aisle spaces
- · A range of accessories available
- · Highly efficient, up to 150lm/W
- · 1-10V, PWM and resistor dimmable as standard, 3-in-1
- · Emergency lumens output: 640lm
- · Surge Protection L/N-PE = 10KV L-N = 6KV
Technical Specifications
Technical Specifications
High / low bay luminaire | |
| Degree of protection (IP rating) | IP40 |
|---|---|
| Housing colour | White |
| Housing material | Aluminium |
| Length | 577 mm |
| Conductor cross section | - mm² |
| Number of poles | - |
| Width | 254 mm |
| Height/depth | 59 mm |
| Number of lamps | 1 |
| Outer diameter | - mm |
| Maximum system power | 150 W |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Power factor | - |
| Lamp power | - W |
| Nominal voltage | 220 - 240 V |
| Colour temperature | 4000 - 4000 K |
| Rated ambient temperature acc. IEC62722-2-1 | 0 - 40 °C |
| Suitable for emergency lighting | Yes |
| With movement sensor | No |
| Control gear included | Yes |
| With light sensor | No |
| Suitable for suspended mounting | Yes |
| Light source included | Yes |
|---|---|
| Dimming trailing edge | No |
| Dimming potentiometer (integrated) | No |
| Dimming 1-10 V | Yes |
| Dimming DMX | No |
| Dimming LineSwitch | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Dimming 0-10 V | No |
| Dimming DALI | No |
| Dimming programmable | No |
| Dimming with push-button | No |
| Dimming DALI-2 | No |
| Dimming sine wave reduction | No |
| Dimming manufacturer's proprietary system | No |
| Dimming Zigbee | No |
| Dimming leading edge | No |
| Dimming RF | No |
| Dimming touch and dim | No |
| Dimming mains voltage modulation | No |
| Dimming DSI | No |
| Bluetooth operated | No |
| Suitable for ceiling mounting | Yes |
