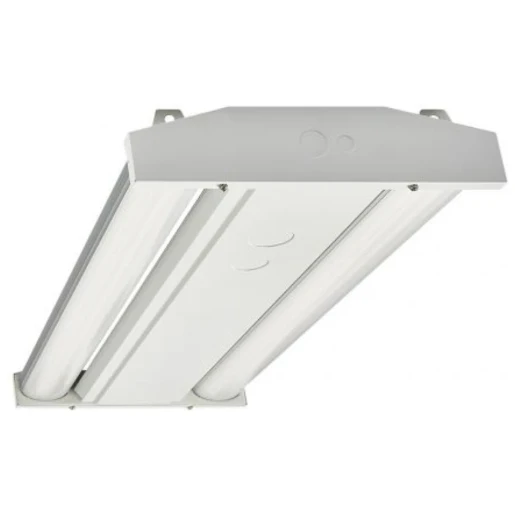

Low Bay Emergency 4000K Beam Ang 120 100W White 15000Lm IP40 Cri80
Part Number:
2501294129
MPN:
LB10040E
- Product Type:
- Lowbays
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Technical Data Sheet
Product Details
Product Details
Collingwood’s history of quality and innovation has led us to extend into the industrial market. With a new range of quality looking low bay lights offering a colour temperature of 4000K, making it ideal for industrial use with high ceilings. This range has high efficacies and 5-year warranty providing low running costs over the extended lifetimes of the product. With a choice of optional beam angles and emergency, the microwave sensor accessory can provide energy and cost savings, by only switching on when it detects movement.
- · A range of mounting options available allowing excellent flexibility on installation
- · Specifically designed for use in aisle spaces
- · A range of accessories available
- · Highly efficient, up to 150lm/W
- · 1-10V, PWM and resistor dimmable as standard, 3-in-1
- · Emergency lumens output: 640lm
- · Surge Protection L/N-PE = 10KV L-N = 6KV
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Outer diameter | - mm |
|---|---|
| Number of poles | - |
| Recess diameter | - mm |
| Conductor cross section | - mm² |
| Recess width | - mm |

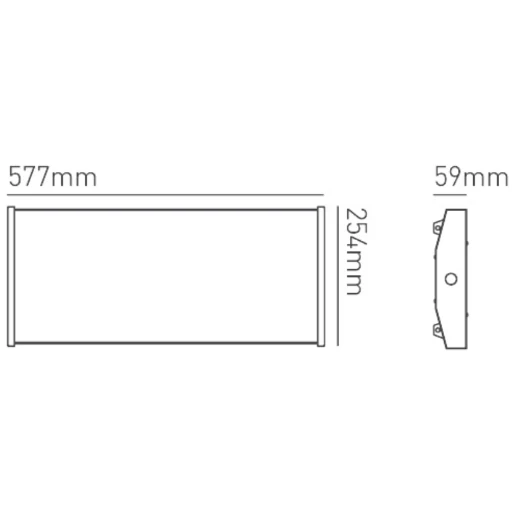

| Height/depth | 59 mm |
| Recess length | - mm |
| Number of lamps | 1 |
| Power factor | - |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Recess height/depth | - mm |
| Maximum system power | 100 W |
| Width | 254 mm |
| Length | 577 mm |
| Lamp power | - W |
| Nominal voltage | 220 - 240 V |
| Colour temperature | 4000 - 4000 K |
| Rated ambient temperature acc. IEC62722-2-1 | 0 - 40 °C |
| Suitable for suspended mounting | Yes |
| With movement sensor | No |
| Light source included | Yes |
| IFTTT support available | No |
| Luminaire may be covered with thermally insulating material | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Suitable for recessed mounting | No |
| Control gear included | Yes |
| Suitable for light line configuration | No |
| With light sensor | No |
|---|---|
| Suitable for emergency lighting | Yes |
| Bluetooth operated | No |
| Dimming with push-button | No |
| Dimming DALI | No |
| Dimming DSI | No |
| Dimming DMX | No |
| Dimming RF | No |
| Dimming mains voltage modulation | No |
| Suitable for ceiling mounting | Yes |
| With air slots | No |
| Suitable for surface mounting | Yes |
| Fit for workplace acc. EN 12464-1 | No |
| Dimming touch and dim | No |
| Dimming Zigbee | No |
| Dimming leading edge | No |
| Dimming trailing edge | No |
| Dimming DALI-2 | No |
| Compatible with Amazon Alexa | No |
| Dimming manufacturer's proprietary system | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Dimming 1-10 V | Yes |
| Dimming potentiometer (integrated) | No |
| Dimming programmable | No |
| Dimming 0-10 V | No |
