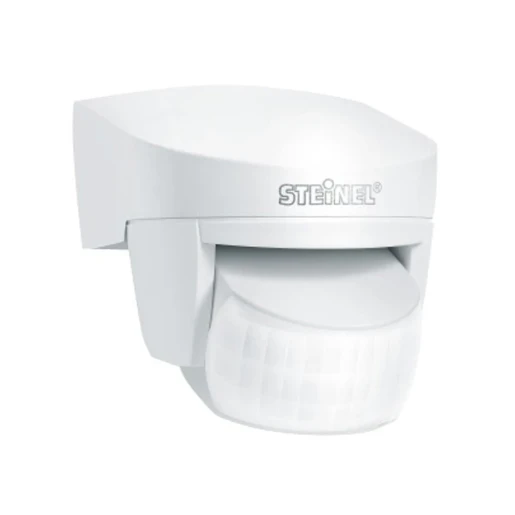

Sensor Is140-2 PIR Sneak-By Guard IP54 1000W 140° White

Part Number:

2500390150

MPN:

608910

To view pricing, availability, and special offering, click the button below and log in.

Product Details

· Suitable for indoor and outdoor use
· ideal for targeted detection close to the building
· 140° angle of coverage
· Reach up to 14m
· Selectable time and twilight threshold
· Sensor turns through 90° and tilts through 180° for exact adjustment of the detection zone

Motion detector
Material	Plastic
Surface finish	Matt
Material qualifier	Thermoplastic
Mounting method	Surface mounted
Colour	White
Model	Movement sensor
Degree of protection (IP rating)	IP54
Voltage type	AC
RAL-number (similar)	9010
Max. reach sideways	14 m
Max. reach frontally	14 m
Max. switching power	1000 W
Switch-off delay	8 s
Diameter reach on floor	14 m
Optimum mounting height	2 m
Max. duty cycle	35 min
Min. switch-on time	8 s
Depth	95 mm
Height	86 mm
Frequency	50 - 60 Hz
Detection angle horizontal	0 - 140 °
Response value luminosity	2 - 2000 lx


Halogen free	Yes
Transparent	No
Auxiliary input	No
Networkable	No
Remote operation	No
With signal unit	No
Teach-function for response value luminosity	No
Response value sensitivity adjustable	No
Dim function with dimmer basic element	No
Alarm function	No
Response value luminosity adjustable	Yes
Staircase monitoring	No
With remote control	No
Bridging switch	No
Suitable for wireless transmission	No
Creep-under protection	Yes
Constant light control	No
HVAC-control	No
Forced switch off	No
Animal zone	No
Suitable for C-load	No
