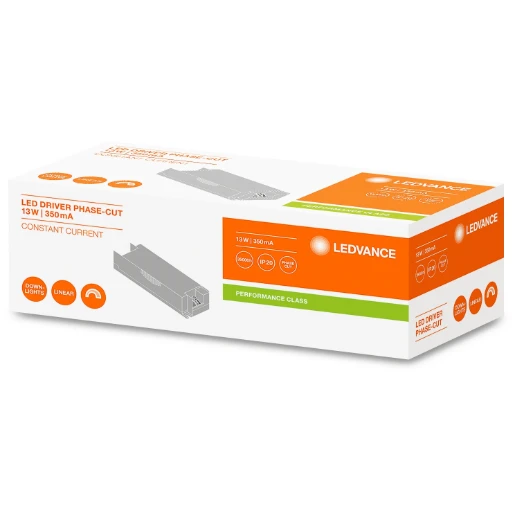

LED DRIVER PHASE-CUT PERFORMANCE -13/220-240/350
Part Number:
2501188751
MPN:
4058075239814
- Product Type:
- Lighting Control
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Details
Product Details
Constant current LED driver with phase-cut dimming interface. Product features: Available in 13 W, 18 W, 25 W and 35 W. Independent installation with optional Cable Clamp Kit. Dimmable on the leading edge and trailing edge. Dimmable from 10…100 %. Lifetime: up to 50,000 h (at max. tc temperature). Type of protection: IP20. Dedicated, constant output current. Low ripple current < 5%. Supply voltage: 220…240 V. Operating frequency: 50/60 Hz. Operated with less than 60 V: Safety extra-low voltage (SELV). Reversible overtemperature, overload, short-circuit and open-circuit protection. Product benefits: Enables installation with commonly used leading-edge and trailing-edge dimmers. 5 years guarantee. Slim housing for narrow installations. High efficiency and reliability. Areas of application: Suitable for LED luminaires and LED modules. Applicable for luminaires of protection classes I and II. For indoor SELV installations. Offices, shopping centers, hospitals, restaurants, hotels. Equipment / Accessories: Cable Clamp Kit to ensure propper strain relief
- · Available in 13 W, 18 W, 25 W and 35 W
- · Independent installation with optional Cable Clamp Kit
- · Dimmable from 10…100 %
- · Dimmable from 10…100 %
- · Lifetime: up to 50,000 h (at max. tc temperature)
- · Type of protection: IP20
- · Dedicated, constant output current
- · Low ripple current < 5%
- · Supply voltage: 220…240 V
- · Operating frequency: 50/60 Hz
Technical Specifications
Technical Specifications
LED driver | |
| Housing | Plastic housing |
|---|---|
| Protection class according to IEC 61140 | II |
| Degree of protection (IP rating) | IP20 |
| Width | 43 mm |
| Diameter | - mm |
| Power consumption | - W |
| Height | 30 mm |
| Length | 97 mm |
| Output voltage | - - 36 V |
| Output current | - - 350 mA |
| Output power | - - 13 W |
| Dimming 1-10 V | No |
| Dimming 0-10 V | No |
| Suitable for outdoor use | No |
| Dimming potentiometer (integrated) | No |
| Suitable for constant current | Yes |
| Dimming manufacturer's proprietary system | Yes |
| Dimming DMX | No |
| Dimming DALI | No |
| Compatible with Casambi | No |
| Bluetooth operated | No |
|---|---|
| Dimming with push-button | Yes |
| Suitable for DC-voltage (primary side) | No |
| Suitable for constant voltage | No |
| Dimming Zigbee | No |
| Dimming touch and dim | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Dimming mains voltage modulation | No |
| Dimming trailing edge | Yes |
| Dimming programmable | No |
| Dimming leading edge | Yes |
| Compatible with Apple HomeKit | No |
| Dimming DSI | No |
| Dimming sine wave reduction | No |
| Dimming LineSwitch | No |
| Dimming RF | No |
| Constant luminous flux control | No |
