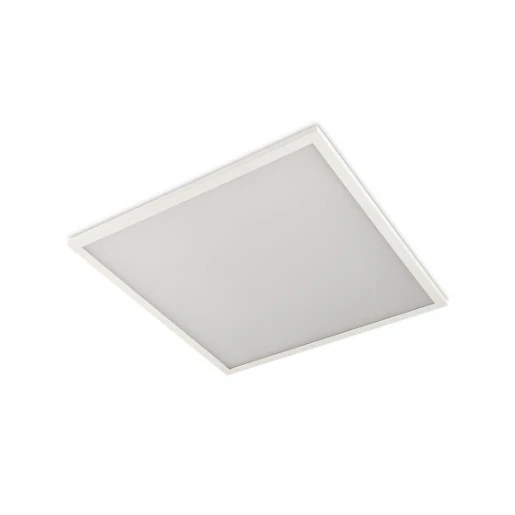

Solis White 40W IP40 4600LM 4000K 115LM/W 600x600 LED Panel
Part Number:
2501470187
MPN:
P2A22S40WA
- Product Type:
- Backlit LED Panels
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Used in office, classroom, and meeting room applications, the Solis panel range is designed with visual comfort in mind to be suitable for reading, writing and computer-based tasks. Supplied with a quick-fit connector for fast installation, the back-lit design provides efficient performance and improved robustness during transit. The range provides many options so that you can convert to be an emergency luminaire quickly with our LEDEP10 module and select from non-dimmable, 0-10V, and DALI2 dimming options to suit your project.
- · Low UGR available
- · Dimmable with DALI 2 or 1-10V
- · Emergency option is available with LEDEP10
- · Supplied with a quick-fit connector for fast installation
- · 40W (P2A19S40WA) for 500lux at 3.0m x 2.4m distance spacings
- · Supplied with a quick-fit connector for fast installation
- · Back-lit design for efficient performance and improved robustness during transit
- · Supplied with 1m long safety steel cable
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Width | 600 mm |
|---|---|
| Height/depth | 32 mm |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Power factor | 9 |
| Number of lamps | 1 |
| Maximum system power | 40 W |
| Unified Glare Rating (UGR) | 22 |
| Length | 600 mm |
| Colour temperature | 4000 - 4000 K |
| Nominal voltage | 220 - 240 V |
| Rated ambient temperature acc. IEC62722-2-1 | 20 °C |
| Light source included | Yes |
| With light sensor | No |
| With movement sensor | No |
| Compatible with Amazon Alexa | No |
|---|---|
| Dimming 1-10 V | Yes |
| Dimming DSI | No |
| Dimming 0-10 V | No |
| Dimming RF | No |
| Bluetooth operated | No |
| Dimming DALI | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| IFTTT support available | No |
| Dimming Zigbee | No |
| Suitable for emergency lighting | No |
| Dimming DALI-2 | No |
| Dimming DMX | No |
