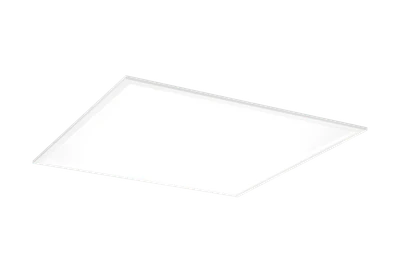

LED Panel Anna 596mm IP20 34W 3750lm 830/35/40K DALI
Part Number:
2501355944
MPN:
96634034
- Product Type:
- Backlit LED Panels
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Recessed LED DALI dimmable panel UGR<19 with adjustable color temperature of 3000K, 3500K or 4000K by switch directly on luminaire. Gentle, soft and glare-free lighting for office applications with opal diffuser made of TpB rated PET for fully homogenous illumination and aluminium frame. DALI driver offering dimming range 1 to 100% via DALI-2 and switchDIM. DC level adjustable. Mains frequency 0/50/60 Hz. CorridorFUNCTION. Luminaire input power: 34 W. Lifetime of 50.000h before luminous flux is reduced to 80 % of the initial value. Chromaticity tolerance (initial MacAdam): 4. Total luminous flux: 3750 lm, Luminaire efficacy: 110 lm/W (4000K). Colour rendering Ra > 80. Tool-free installation (piano key terminal for up to 2.5 mm² wires). External connector box enabling loop-in loop-out wiring. Suitable for emergency escape lighting systems acc. to EN 50172. Flicker free. Suitable for lay-in installation, suspension and surface mounting. Dimensions: 596 x 596 x 60 mm, weight: 2.23 kg.
- · Rated luminous flux (IEC 62722-2-1): 3754
- · Colour Temperature: 3000
- · Protection Class: II
- · Degree of protection (IP): IP20
- · ENEC certified driver
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Type of grid | None |
|---|---|
| Lumen setting adjustable | Continuously variable |
| Impact resistance (IK rating) | IK03 |
| Protection class according to IEC 61140 | II |
| Colour rendering index (CRI/Ra) | 80-89 |
| Colour consistency (McAdam ellipse) | SDCM4 |
| Cover material | Plastic opal |
| Housing colour | White |
| Colour temperature switchable | Discrete positions |
| Colour of light | White |
| Control gear | LED driver constant current |
| Filament test according to IEC 60695-2-11 | 650 C - 30 s |
| Photobiological safety according to EN 62471 | RG0 |
| Light distribution | Asymmetric |
| Voltage type | AC |
| Light outlet | Direct |
| Light source type | LED non-replaceable |
| Housing material | Aluminium |
| Outer diameter | - mm |
| Conductor cross section | - mm² |
| Length | 596 mm |
| Width | 596 mm |
| Recess diameter | - mm |
| Recess width | - mm |
| Number of lamps | 1 |
| Height/depth | 60 mm |
| Flickering value Pst LM | 1 |
| Stroboscope effect value SVM | - |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance (35,000 h at 25 °C) | 85 % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Rated life time L70/B50 at 25 °C | 74000 h |
| Maximum system power | 34 W |
| Recess height/depth | - mm |
| Recess length | - mm |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | 80 % |
| Unified Glare Rating (UGR) | 18 |
| Max. number of luminaires per miniature circuit breaker B16 | 54 |
| Max. number of luminaires per miniature circuit breaker C16 | 54 |
| Power factor | 0.95 |
| Number of poles | - |
| Lamp power | - W |
|---|---|
| Colour temperature | 3000 - 4000 K |
| Rated ambient temperature acc. IEC62722-2-1 | -20 - 40 °C |
| Nominal voltage | 220 - 240 V |
| Nominal current | - - - mA |
| Light source included | Yes |
| With movement sensor | No |
| Suitable for emergency lighting | No |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | No |
| Suitable for recessed mounting | Yes |
| Constant luminous flux control | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Fit for workplace acc. EN 12464-1 | Yes |
| Suitable for light line configuration | No |
| Control gear included | Yes |
| IFTTT support available | No |
| Dimming manufacturer's proprietary system | No |
| Dimming potentiometer (integrated) | No |
| Dimming with push-button | Yes |
| Dimming Zigbee | No |
| With air slots | No |
| Luminaire may be covered with thermally insulating material | No |
| Dimming touch and dim | No |
| Dimming programmable | No |
| Dimming RF | No |
| Replaceable control gear | Yes |
| Dimming leading edge | No |
| Dimming trailing edge | No |
| Dimming mains voltage modulation | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming 1-10 V | No |
| Dimming 0-10 V | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Dimming DALI-2 | No |
| Bluetooth operated | No |
| Dimming DSI | Yes |
