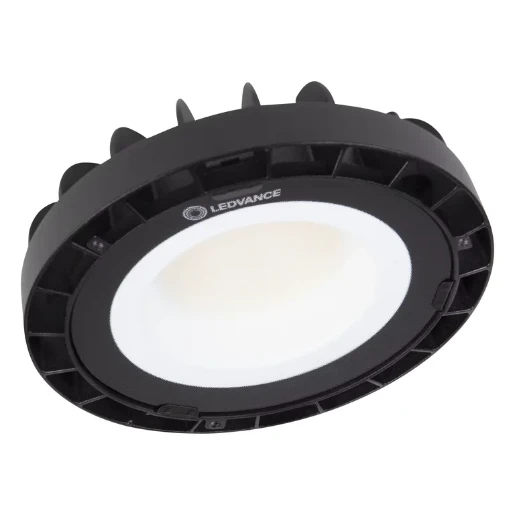

High Bay Compact V 83W 840 110 Degree IP65
Part Number:
2501507781
MPN:
4058075708174
- Product Type:
- Highbays
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
The Ledvance High Bay Compact V 83W 840 110 Degree IP65 is a high-quality, energy-efficient LED luminaire that is perfect for a variety of indoor and outdoor applications. The luminaire features a sleek, modern design and is available in a variety of colors to match any décor.The Ledvance High Bay Compact V 83W 840 110 Degree IP65 is equipped with high-quality LEDs that provide a bright, uniform light output. The luminaire also features a wide beam angle of 110 degrees, making it ideal for large, open spaces.The Ledvance High Bay Compact V 83W 840 110 Degree IP65 is also very energy-efficient. The luminaire consumes only 83 watts of power, yet it produces a light output of 10,000 lumens. This means that the luminaire has a high luminous efficacy of 120 lm/W, which is significantly higher than traditional fluorescent or incandescent lamps.The Ledvance High Bay Compact V 83W 840 110 Degree IP65 is also very durable. The luminaire is made from high-quality materials and is designed to withstand the rigors of everyday use. The luminaire is also IP65 rated, which means that it is protected against dust and water.The Ledvance High Bay Compact V 83W 840 110 Degree IP65 is the perfect choice for a variety of indoor and outdoor applications. The luminaire is energy-efficient, durable, and easy to install.
- · Modern exclusive design
- · Energy savings of up to 60 % compared to conventional high bay luminaires
- · 3 years guarantee
- · Optimized weight and size due to compact design
Technical Specifications
Technical Specifications
High / low bay luminaire | |
| Reflector | None |
|---|---|
| Impact resistance (IK rating) | IK06 |
| Lamp cap/base | None |
| Colour rendering index (CRI/Ra) | 80-89 |
| Type of cabling | Ending |
| Light diffuser type | Diffuser |
| Photobiological safety according to EN 62471 | RG1 |
| Housing colour | Black |
| Protection class according to IEC 61140 | I |
| Colour of light | White |
| Light distribution | Symmetric |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Lumen setting adjustable | No |
| Colour temperature switchable | No |
| Beam angle adjustable | No |
| Degree of protection (IP rating) | IP65 |
| Voltage type | AC |
| Light source type | LED non-replaceable |
| Housing material | Aluminium |
| Width | - mm |
| Length | 180 mm |
| Conductor cross section | 1 mm² |
| Outer diameter | 180 mm |
| Number of poles | 3 |
| Number of lamps | 0 |
| Height/depth | 50 mm |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Max. number of luminaires per miniature circuit breaker B16 | 35 |
| Max. number of luminaires per miniature circuit breaker C16 | 35 |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq) | - % |
| Power factor | 0.9 |
| Rated life time L70/B50 at 25 °C | 50000 h |
|---|---|
| Maximum system power | 83 W |
| Lamp power | - W |
| Nominal voltage | 220 - 240 V |
| Nominal current | 360 - 360 mA |
| Rated ambient temperature acc. IEC62722-2-1 | -20 - 45 °C |
| Colour temperature | 4000 - 4000 K |
| Suitable for auxiliary lamp | No |
| Dimming Zigbee | No |
| Dimming touch and dim | No |
| Dimming with push-button | No |
| Bluetooth operated | No |
| Dimming sine wave reduction | No |
| Dimming LineSwitch | No |
| Dimming RF | No |
| Dimming programmable | No |
| Dimming mains voltage modulation | No |
| Dimming leading edge | No |
| Dimming trailing edge | No |
| Dimming manufacturer's proprietary system | No |
| Dimming potentiometer (integrated) | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | Yes |
| Constant luminous flux control | No |
| With protective cover | Yes |
| Replaceable control gear | No |
| Dimming DSI | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Control gear included | Yes |
| Suitable for emergency lighting | No |
| Light source included | Yes |
| Dimming DMX | No |
