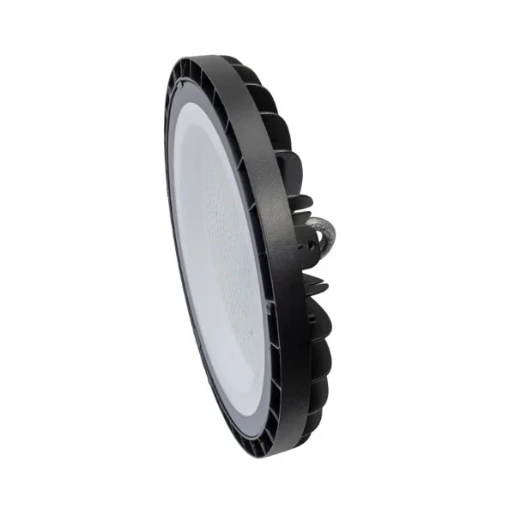

150W Sonic Slim Led Highbay Ip65 120Lm/W 4000K
Part Number:
2501591313
MPN:
RSS15040-04
- Product Type:
- Highbays
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Details
Product Details
The Robus 150w sonic slim led highbay ip65 120lm/w 4000k is a high-quality, energy-efficient LED highbay that is perfect for a wide range of applications, including warehouses, manufacturing plants, garages, workshops, aircraft hangars, retail superstores, gymnasiums, and sports halls.The sonic slim LED highbay is made from durable die cast aluminium and has a glass front, giving it a high impact protection rating of IK07. It is also IP65 rated, meaning that it is dust-tight and protected against water jets from any direction.The sonic slim LED highbay produces a bright, white light with a color temperature of 4000K, which is ideal for task lighting. It has a high efficiency of 120lm/W, which means that it produces a lot of light for the amount of power it consumes.
- · Suitable for use in warehouses, manufacturing plants, garages, workshops & aircraft hangars, retail superstores, gymnasiums & sports halls
- · LED replacement for 200W metal halide highbay fittings
- · Die cast aluminium housing with glass front providing a high impact rating of IK07
- · Prewired with 1m flex
- · Very high efficacy of 127lm/W
- · Wide operating temperature range of -25°C to 45°C
- · Suitable for switching by PIR, Microwave or Photocell
- · 110 Beam Angle
Technical Specifications
Technical Specifications
High / low bay luminaire | |
| Colour rendering index (CRI/Ra) | 80-89 |
|---|---|
| Impact resistance (IK rating) | IK07 |
| Degree of protection (IP rating) | IP65 |
| Housing material | Aluminium |
| Power factor | 0.99 |
| Outer diameter | 260 mm |
| Rated life time L70/B50 at 25 °C | 30000 h |
| Height/depth | 50 mm |
| Maximum system power | 146.5 W |
| Nominal current | 630 - 630 mA |
| Colour temperature | 4000 - 4000 K |
| Nominal voltage | 220 - 240 V |
| Rated ambient temperature acc. IEC62722-2-1 | -20 - 45 °C |
| Dimming potentiometer (integrated) | No |
| Dimming mains voltage modulation | No |
| Dimming manufacturer's proprietary system | No |
| Dimming 1-10 V | No |
|---|---|
| Dimming with push-button | No |
| Dimming DSI | No |
| Dimming DALI | No |
| Dimming programmable | No |
| Dimming touch and dim | No |
| Dimming 0-10 V | No |
| Dimming DMX | No |
| Dimming sine wave reduction | No |
| Dimming LineSwitch | No |
| Dimming leading edge | No |
| Dimming RF | No |
| Dimming trailing edge | No |
| Dimming Zigbee | No |
| Control gear included | Yes |
