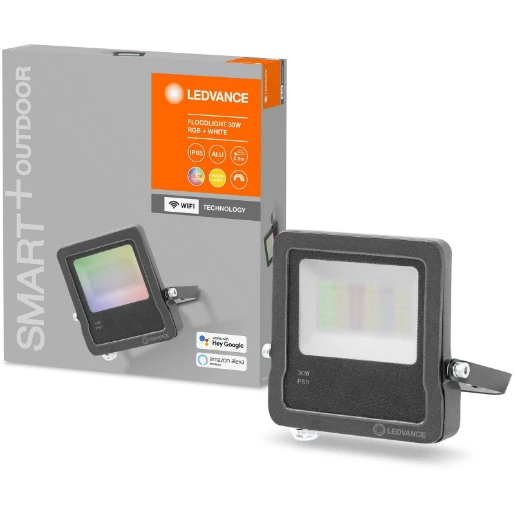

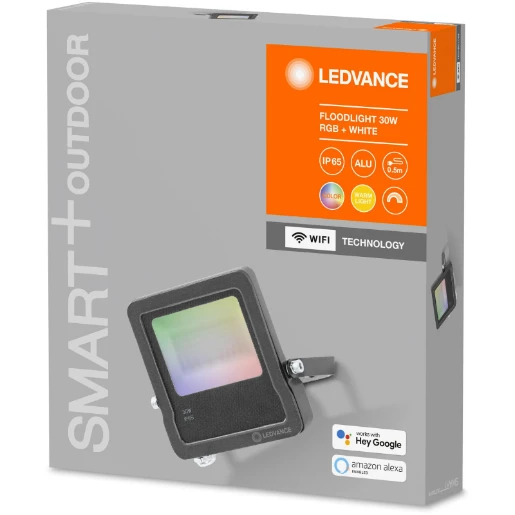

Floodlight Smart+Wifi LED RGBW IP65 30W 2190Lm 209X168X30mm
Part Number:
2501357089
MPN:
4058075474642
- Product Type:
- Floodlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Details
Product Details
- · Controllable via LEDVANCE SMART+ WiFi App (with minimum Android 4.4 or iOS 9.0)
- · Controllable via voice control available: Google Assistant or Amazon Alexa
- · Dimmable
- · Dimmable
- · Color temperature: 3,000 K (Warm White)
- · Network protocol: WiFi
- · Mounting bracket for up to 180° tilting
- · Type of protection: IP65
- · Connection via 0.5 m cable, wiring required
- · Easy and quick installation
Technical Specifications
Technical Specifications
Downlight / spot luminaire / floodlight | |
| Lamp cap/base | None |
|---|---|
| Control gear | Electronic ballast |
| Lumen setting adjustable | Continuously variable |
| Type of cabling | Ending |
| Colour rendering index (CRI/Ra) | 80-89 |
| Impact resistance (IK rating) | IK05 |
| Energy efficiency class of light source according to EU regulation 2019/2015 | F |
| Protection class according to IEC 61140 | I |
| Adjustability | Rotatable |
| Connection type | Screwless terminal |
| Beam angle adjustable | No |
| Colour temperature switchable | No |
| Voltage type | AC |
| Light outlet | Direct |
| Light source type | LED non-replaceable |
| Housing material | Aluminium |
| Outer diameter | - mm |
| Length | 209 mm |
| Conductor cross section | - mm² |
| Height/depth | 30 mm |
| Width | 168 mm |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance (35,000 h at 25 °C) | - % |
| Flickering value Pst LM | - |
| Unified Glare Rating (UGR) | - |
| Stroboscope effect value SVM | - |
| Max. number of luminaires per miniature circuit breaker C16 | 19 |
| Max. number of luminaires per miniature circuit breaker B16 | 13 |
| Rated life time L70/B50 at 25 °C | 30000 h |
| Maximum system power | 30 W |
| Power factor | 0.9 |
| Number of poles | 3 |
| Number of lamps | 0 |
| Lamp power | - W |
| Nominal voltage | 220 - 240 V |
| Colour temperature | 3000 - 3000 K |
| Connectable conductor cross section | - mm² |
| Nominal current | - mA |
| Rated ambient temperature acc. IEC62722-2-1 | -20 - 40 °C |
| Cut-out diameter | - mm |
| Bluetooth operated | No |
|---|---|
| Suitable for low voltage cable system | No |
| Compatible with Amazon Alexa | Yes |
| Replaceable control gear | No |
| Dimming with push-button | No |
| Dimming Zigbee | No |
| Dimming touch and dim | No |
| Compatible with Google Assistant | Yes |
| Compatible with Apple HomeKit | No |
| Dimming RF | No |
| Dimming LineSwitch | No |
| Dimming sine wave reduction | No |
| Dimming programmable | No |
| Dimming leading edge | No |
| Dimming mains voltage modulation | No |
| Dimming trailing edge | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Brushed surface | No |
| Constant luminous flux control | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DALI-2 | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Fit for workplace acc. EN 12464-1 | No |
| Luminaire may be covered with thermally insulating material | No |
| Dimming DMX | No |
| Dimming DSI | No |
| IFTTT support available | Yes |
| Control gear included | Yes |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Suitable for suspended mounting | No |
| Light source included | Yes |
| Suitable for wall mounting | Yes |
| Suitable for ceiling mounting | No |
| Suitable for recessed mounting | No |
| Suitable for surface mounting | Yes |
| With light sensor | No |
| With movement sensor | No |
