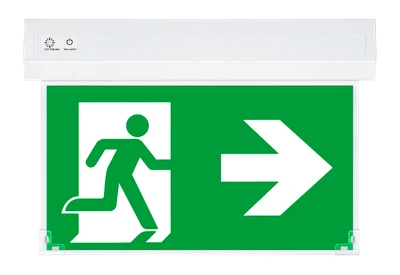

LED Exit sign NINA IP40 E3 30 meter self test
Part Number:
2501532775
MPN:
96635654
- Product Type:
- Exit Signs
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
LED Escape sign luminaire with local battery supply for 3 hour emergency lighting with Manual- and SelfTest(Autotest) function, Viewing range up to 30m, Compliant with DIN EN 1838 and DIN4844-1, easy to install with all in one mounting bracket for ceiling, wall, 90° mounting, including 4 pictograms (up, down, left, right), display of luminaire status via status LED, Lifetime: 50.000hrs @L80, protection class: IP40, Impact strength: IK03, Maintained and non-maintained mode, battery: LiFePO4 3,2V 1,5Ah, initial charging period: 24 hours. Dimensions: 343 x 45 x 231 mm, weight: 0.98 kg.
- · Rated luminous flux (IEC 62722-2-1): 70
- · Colour Temperature: 5700
- · Protection Class: II
- · Degree of protection (IP): IP40
Technical Specifications
Technical Specifications
Emergency luminaire | |
| Lamp cap/base | None |
|---|---|
| Housing material | Plastic |
| Protection class according to IEC 61140 | II |
| Degree of protection (IP rating) | IP40 |
| Impact resistance (IK rating) | IK04 |
| Cover material | Plastic opal |
| Housing colour | White |
| Mounting method | Surface mounting/recessed mounting |
| Voltage type | AC |
| Width | 45 mm |
| Light source type | LED non-replaceable |
| Recess diameter | - mm |
| Conductor cross section | - mm² |
| Recess width | - mm |
| Outer diameter | - mm |
| Number of poles | - |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | 80 % |
| Max. number of luminaires per miniature circuit breaker C16 | - |
| Viewing distance | - m |
| Luminous flux in standby mode | - lm |
| Rated life time L70/B50 at 25 °C | 74000 h |
| Power factor | 0.5 |
|---|---|
| Number of lighting heads | - |
| Maximum system power | 5.1 W |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Max. number of luminaires per miniature circuit breaker B16 | - |
| Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) | - % |
| Flickering value Pst LM | - |
| Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq) | - % |
| Stroboscope effect value SVM | - |
| Number of lamps | 1 |
| Nominal voltage | 220 - 240 V |
| Colour temperature | 5700 - 5700 K |
| Rated ambient temperature acc. IEC62722-2-1 | 0 - 40 °C |
| Nominal operation time | - - - h |
| With remote control | No |
| Constant luminous flux control | No |
| Light source included | Yes |
| Replaceable control gear | Yes |
| With remote switch connection | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Pictogram included | No |
