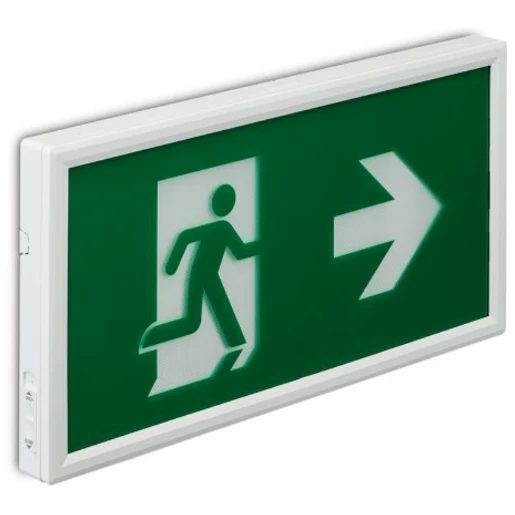

Luminaire Emergency Box Manual Test Polycarbonate
Part Number:
2501310616
MPN:
EMBX35M
- Product Type:
- Exit Boxes
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Technical Data Sheet
Product Details
Product Details
Collingwood's range of emergency boxes contain the very latest LED and battery technology to ensure a modern solution with long lifetimes and high performance. They are suitable for use in open areas and escape routes as an exit sign, with a 35m viewing distance. there is a row of LEDs on the bottom e°e of the fixture to provide additional illumination. The range of emergency boxes can be used in maintained or non maintained modes. Legends are available separately.
- · Terminals allow for both maintained and non-maintained usage, by simply connecting the cables to the push-fit terminals
- · Manual test (without button) or self test versions available
- · NiCd, has proven technology which is widely used
- · Rugged PC housing
- · Viewing Distance 35m
- · 35m viewing distance allowing it to be assembled in many different room dimensions
- · Complying with ISO 3864-1, and proud members of the ICEL
Technical Specifications
Technical Specifications
Emergency luminaire | |

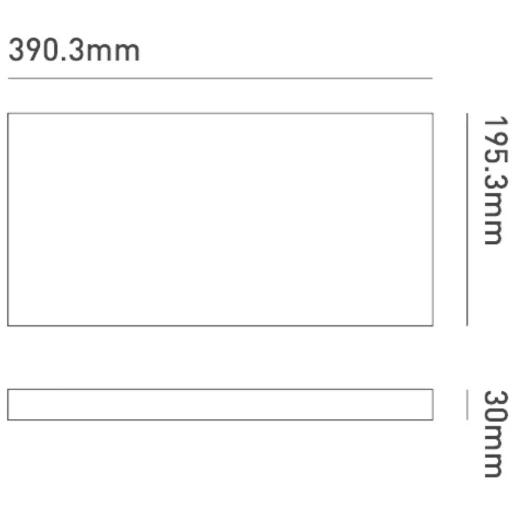

| Width | 195 mm |
|---|---|
| Maximum system power | 35 W |
| Viewing distance | 35 m |
| Number of lamps | 1 |
| Nominal voltage | 220 - 240 V |
|---|---|
| Colour temperature | 6500 - 6500 K |
| Replaceable control gear | No |
| Light source included | Yes |
