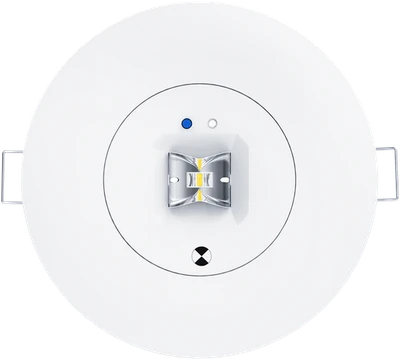

LED Anti panic Downlight IRIS IP20 E3 self test
Part Number:
2501532771
MPN:
96635650
- Product Type:
- Emergency Downlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
LED emergency downlight for antipanic lighting with min. 0,5 lux acc. to EN 1838. Special polycarbonate lens design to improve and maximise spacing. Colour Temperature: 4000K. Tool-free and fast installation due to retaining springs and included connector for easy and tool-free loop-in loop-out wiring. Cut out diameter 67 - 130mm, tool-free replacement of battery. Luminaire with local battery supply (LiFePO4) for 3 hour emergency lighting in non-maintained mode, with automatic test (self-test), display of luminaire status via status LED, battery: LiFePO4 3,2V 1,5Ah, initial charging period: 24 hours, Surface mount box availalble as accessory.Dimensions: Ø140 x 3 mm, weight: 0.27 kg.
- · Rated luminous flux (IEC 62722-2-1): 212
- · Colour Temperature: 4000
- · Protection Class: II
- · Degree of protection (IP): IP20
Technical Specifications
Technical Specifications
Emergency luminaire | |
| Housing material | Plastic |
|---|---|
| Lamp cap/base | None |
| Impact resistance (IK rating) | IK03 |
| Protection class according to IEC 61140 | II |
| Housing colour | White |
| Voltage type | AC |
| Degree of protection (IP rating) | IP20 |
| Light source type | LED non-replaceable |
| Recess diameter | - mm |
| Number of poles | - |
| Conductor cross section | - mm² |
| Recess width | - mm |
| Outer diameter | 140 mm |
| Width | - mm |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | 80 % |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Viewing distance | - m |
| Luminous flux in standby mode | - lm |
| Stroboscope effect value SVM | - |
| Flickering value Pst LM | - |
| Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) | - % |
|---|---|
| Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq) | - % |
| Rated life time L70/B50 at 25 °C | 74000 h |
| Max. number of luminaires per miniature circuit breaker C16 | - |
| Max. number of luminaires per miniature circuit breaker B16 | - |
| Number of lighting heads | - |
| Power factor | 0.4 |
| Maximum system power | - W |
| Number of lamps | 1 |
| Nominal voltage | 220 - 240 V |
| Colour temperature | 4000 - 4000 K |
| Rated ambient temperature acc. IEC62722-2-1 | 0 - 40 °C |
| Nominal operation time | - - - h |
| Light source included | Yes |
| With remote control | No |
| Replaceable control gear | Yes |
| Pictogram included | No |
| With remote switch connection | No |
| Constant luminous flux control | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
