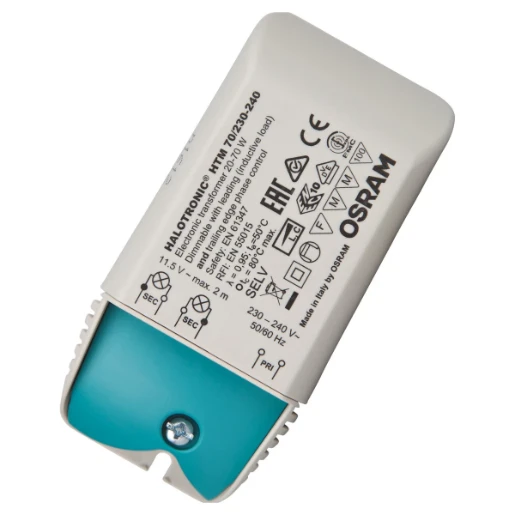

Transformer Electronic Mouse Housing 70W 240V
Part Number:
2500050221
MPN:
4050300442310
- Product Type:
- Lighting Transformers
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
HTM70 is a HALOTRONIC-COMPACT HTM/HTN Electronic Transformer for low-voltage halogen lamp. Dimmable on the leading edge (without HTN) and trailing edge. Very low power loss thanks to high efficacy. Strain relief suitable for different cable types (HTM). Suitable for space-critical installation thanks to compact functional design. Extremely compact transformer for highly space-critical installation conditions (HTN). Protective operation throughout the entire partial-load range for long lamp life. 50 to 60Hz line frequency. RI suppression to EN 55015 (A1: 2007)/CISPR 15, EN 55022. Line harmonics according to EN 61000-3-2. Immunity according to EN 61547. Safety to EN 61347. Short-circuit protection, overload protection, over temperature protection: electronically reversible. Electrical isolation between the primary side and the secondary side. Switching between electronic transformer and lamp not permitted. Energy efficiency =91% (according to ErP regulation 2012/1194/EC).
- · Line frequency: 50…60 Hz
- · RI suppression: to EN 55015 (A1: 2007)/CISPR 15, EN 55022
- · Immunity according to EN 61547
- · Immunity according to EN 61547
- · Safety: to EN 61347
- · Short-circuit protection, overload protection, overtemperature protection: electronically reversible
- · Electrical isolation between the primary side and the secondary side
- · Energy efficiency: = 91 % (according to ErP regulation 2012/1194/EC)
- · Dimmable on the leading edge (without HTN) and trailing edge
- · Very low power loss thanks to high efficacy
Frequently Bought Together
Current Product
Osram
Transformer Electronic Mouse Housing 70W 240V
Error while fetching price from ERP!
Ledvance
Transformer Electronic Mouse Housing 150W 240V
Error while fetching price from ERP!
Qty: 1Technical Specifications
Technical Specifications
Low voltage transformer | |
| Width | 52 mm |
|---|---|
| Length | 108 mm |
| Height | 33 mm |
| Diameter | - mm |
| Number of output positions (pairs) | 4 |
| Power | 20 - 70 W |
| Output voltage | - - 11.2 V |
| Input voltage | - - 240 V |
| Dimming 1-10 V | No |
| Safety transformer | Yes |
| Dimming 0-10 V | No |
| Dimmable | Yes |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming sine wave reduction | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Dimming manufacturer's proprietary system | No |
|---|---|
| Dimming mains voltage modulation | No |
| Dimming leading edge | Yes |
| Dimming trailing edge | Yes |
| Dimming touch and dim | No |
| Dimming RF | No |
| Dimming programmable | No |
| Over temperature protection | Yes |
| With secondary automatic circuit breaker | No |
| Overload protection | Yes |
| Dimming LineSwitch | No |
| Built-in | Yes |
| Short-circuit protected | Yes |
| Dimming DSI | No |
| Dimming potentiometer (integrated) | No |
| Dimming DALI | No |
| Dimming DMX | No |
| IFTTT support available | Yes |
