Transformer Electronic Mouse Housing 105W 240V
Part Number:
2500050222
MPN:
HTM105
- Product Type:
- Lighting Transformers
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
A HALOTRONIC-COMPACT Electronic Transformer for low-voltage halogen lamps. Very low power loss thanks to high efficacy. Strain relief suitable for different cable types (HTM). Suitable for space-critical installation thanks to compact functional design. Extremely compact transformer for highly space-critical installation conditions (HTN). Protective operation throughout the entire partial-load range for long lamp life. 50 to 60Hz line frequency. RI suppression to EN 55015 (A1: 2007)/CISPR 15, EN 55022. Line harmonics according to EN 61000-3-2. Immunity according to EN 61547. Safety to EN 61347. Short-circuit protection, overload protection, over temperature protection - electronically reversible. Electrical isolation between the primary side and the secondary side. Switching between electronic transformer and lamp not permitted. Energy efficiency =91% (according to ErP regulation 2012/1194/EC). Dimmable on the leading edge (without HTN) and trailing edge.
- · Dimming capability (0-100%)
- · Suitable for 12v halogen lamps; wattage between 35 and 105W.
- · Cable cross-section: 2.5 mm²
- · Ambient temperature range: 0°C to 45°C
- · Overload, over-heating and short-circuit protection electronically reversible
- · Degree of protection: IP20

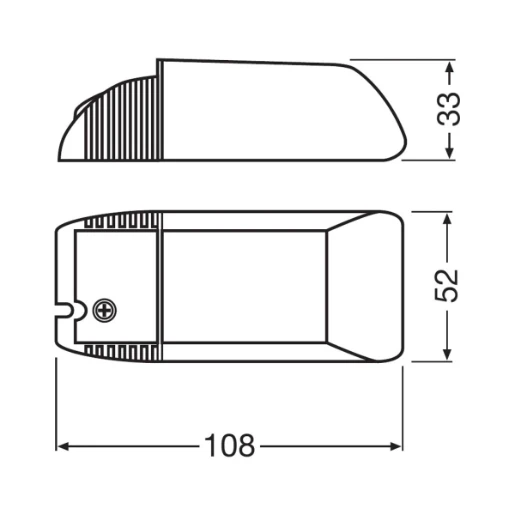

- · Dimensions: 108x52x33mm (LxWxH)
- · Immunity according to EN 61547, Safety to EN 61347.
- · Overload protection
- · Switching between electronic transformer and lamp is not permitted
Technical Specifications
Technical Specifications
Low voltage transformer | |
| Type of transformer | Electronic transformer |
|---|---|
| Degree of protection (IP rating) | IP20 |
| Connection type primary side | Screw connection |
| Connection type secondary side | Screw connection |
| Length | 108 mm |
| Height | 33 mm |
|---|---|
| Width | 52 mm |
| Input voltage | 230 - 240 V |
| Output voltage | 11.5 V |
| Power | 105 - 105 W |
