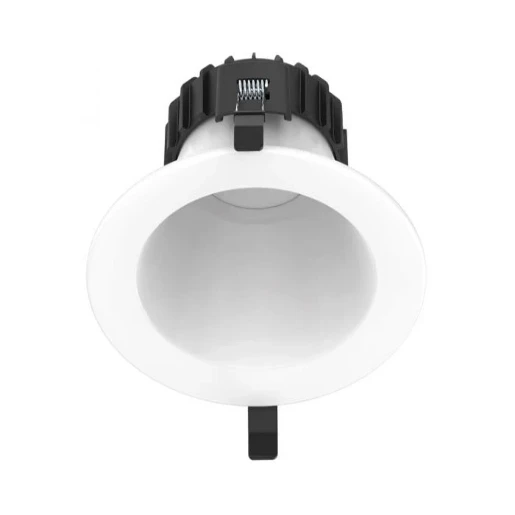

14W IP65 2000Lm 80° Beam Angle 4000K 142Lm/WHigh Performance UGR19 (using insert accessory) Downlight
Part Number:
2501590466
MPN:
THP2N
- Product Type:
- Recessed Commercial Downlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
Thea Pro downlight is the ultimate product for any commercial installation, including offices, warehouses, hotels, schools, and gyms. Featuring a rating of IP65, this product provides versatility by providing internal and external installation. With practical benefits including emergency solutions, plug-and-play connectors, and a range of dimming options, we are sure it's the perfect solution.
- · Highly efficient 142 Llm/W ensures low running costs
- · IP65 protected as standard against water jets, suitable for bathroom zone 1
- · UGR19 compliant low glare lighting when insert is used
- · Circular economy design by Collingwood, enables the product to be dissembled quickly for easy upgrade of the LEDs and driver or recycling at end of life
- · TP(a) Thermoplastic
- · 850° Glow Wire Test
- · 2-part first/second fix connector available on request for easy maintenance
Technical Specifications
Technical Specifications
Downlight / spot luminaire / floodlight | |
| Housing colour | White |
|---|---|
| Degree of protection (IP), front side | IP45 |
| Housing material | Aluminium |
| Width | 195 mm |
| Height/depth | 100 mm |
| Length | 195 mm |
| Maximum system power | 14 W |
| Number of lamps | 1 |
| Rated life time L70/B50 at 25 °C | 80000 h |
| Unified Glare Rating (UGR) | 22 |
| Nominal voltage | 220 - 240 V |
| Power factor | 9 |
| Colour temperature | 4000 - 4000 K |
| Rated ambient temperature acc. IEC62722-2-1 | 20 °C |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Light source included | Yes |
| Suitable for surface mounting | No |
| With movement sensor | No |
| Suitable for wall mounting | No |
| Compatible with Google Assistant | No |
| Dimming potentiometer (integrated) | No |
|---|---|
| Dimming LineSwitch | No |
| Dimming mains voltage modulation | No |
| Dimming programmable | No |
| Dimming touch and dim | No |
| IFTTT support available | No |
| Suitable for ceiling mounting | Yes |
| Suitable for recessed mounting | Yes |
| Compatible with Amazon Alexa | No |
| Dimming RF | No |
| Dimming trailing edge | No |
| Dimming DALI | No |
| Dimming manufacturer's proprietary system | No |
| Compatible with Apple HomeKit | No |
| Dimming 0-10 V | No |
| Dimming DMX | No |
| Dimming DALI-2 | No |
| Dimming DSI | No |
| Dimming leading edge | No |
| Dimming 1-10 V | No |
| Dimming sine wave reduction | No |
