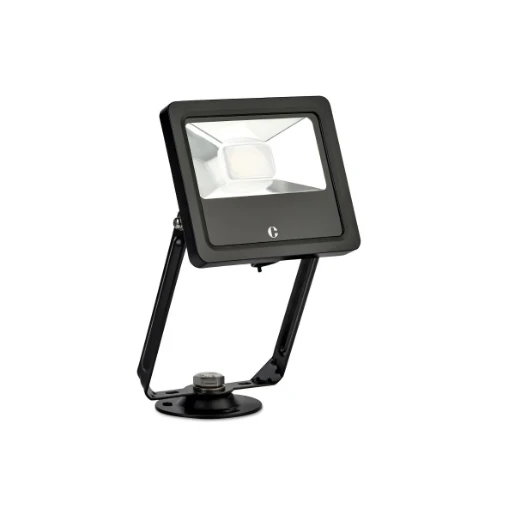

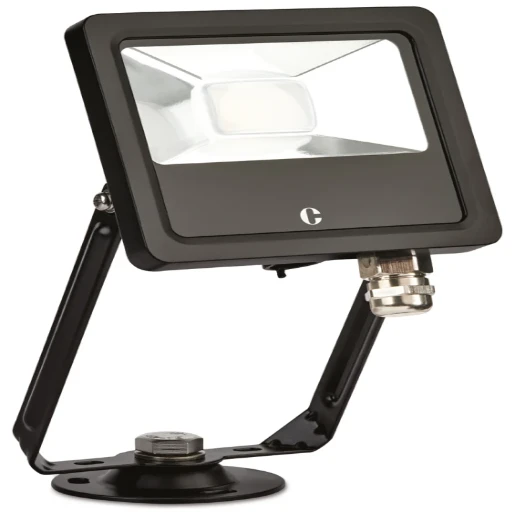

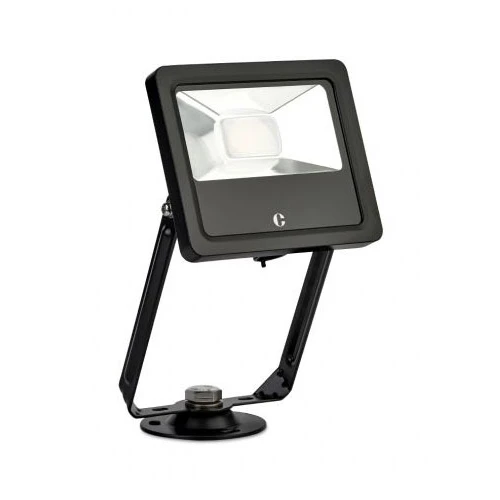

Floodlight Switchable IP65 10W Black Non PIR Tilt-Twist-Turn
Part Number:
2501159055
MPN:
FL01BXCS
- Product Type:
- Coastal Floodlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Technical Data Sheet
Product Details
Product Details
Collingwood FL01 Colour Switchable Floodlight is a wide 120° beam angle and a unique 360° rotation, flicker-free floodlight is the ideal solution for outdoor use, lighting large areas, courtyards and entrances or for up lighting trees and buildings. With a market leading efficacy and contemporary black cast aluminium body, this colour switchable light is a versatile solution for your space.
- · Colour switchable between 3 colour temperatures
- · IP65 rated, meaning it provides optimum protection against the impacts of rainwater and general adverse weather conditions
- · High efficacy of up to 130lm/W, being the most energy efficient and providing cost savings over time
- · Approved for coastal areas with a salt mist protective paint and has marine grade 316 stainless steel fixings
- · Wide 120° beam angle, reducing the number of fittings per area required
- · Supplied with 1m cable
- · Approved for coastal areas with a salt mist protective paint and has marine grade 316 stainless steel fixings
- · Approved for coastal areas with a salt mist protective paint and has marine grade 316 stainless steel fixings
- · Approved for coastal areas with a salt mist protective paint and has marine grade 316 stainless steel fixings
- · Performs in even more extreme conditions from -40°C to +40°C
Technical Specifications
Technical Specifications
Downlight / spot luminaire / floodlight | |
| Housing colour | Black |
|---|---|
| Impact resistance (IK rating) | IK07 |
| Degree of protection (IP), front side | IP65 |
| Housing material | Aluminium |
| Width | 110 mm |
| Length | 30 mm |
| Number of lamps | 1 |
| Height/depth | 205 mm |
| Maximum system power | 10 W |
| Unified Glare Rating (UGR) | 14 |
| Power factor | 5 |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Lamp power | - W |
| Nominal voltage | 220 - 240 V |
| Colour temperature | 3000 - 6500 K |
| Rated ambient temperature acc. IEC62722-2-1 | - 40 °C |
| Dimming DALI-2 | No |
| Suitable for low voltage cable system | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Control gear included | Yes |
| Suitable for recessed mounting | No |
| Luminaire may be covered with thermally insulating material | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Suitable for surface mounting | Yes |
| Fit for workplace acc. EN 12464-1 | No |
| Brushed surface | No |
| Suitable for ceiling mounting | No |
| Suitable for traverse mounting | No |
|---|---|
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Dimming trailing edge | No |
| IFTTT support available | No |
| Dimming leading edge | No |
| Dimming Zigbee | No |
| Dimming touch and dim | No |
| Dimming DMX | No |
| Dimming mains voltage modulation | No |
| Dimming RF | No |
| Dimming LineSwitch | No |
| Dimming DSI | No |
| Dimming with push-button | No |
| Dimming programmable | No |
| Dimming DALI | No |
| Compatible with Apple HomeKit | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming potentiometer (integrated) | No |
| Dimming sine wave reduction | No |
| Dimming manufacturer's proprietary system | No |
| Light source included | Yes |
| Suitable for suspended mounting | No |
| With movement sensor | No |
| With light sensor | No |
| Suitable for wall mounting | Yes |
