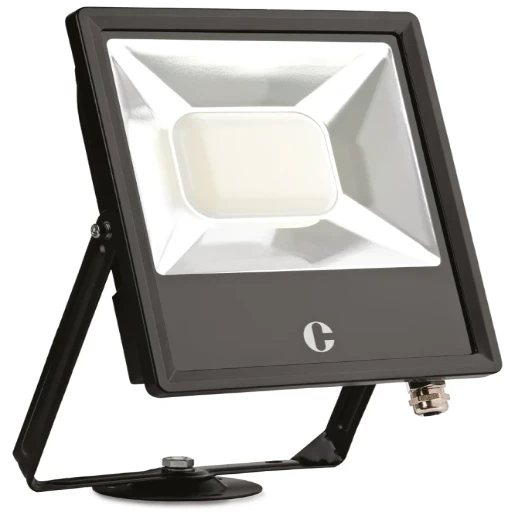

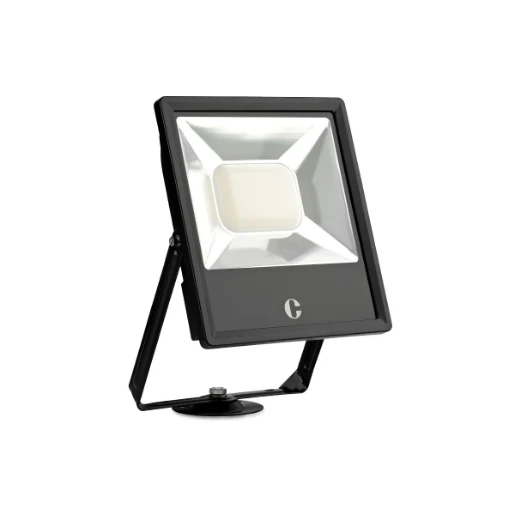

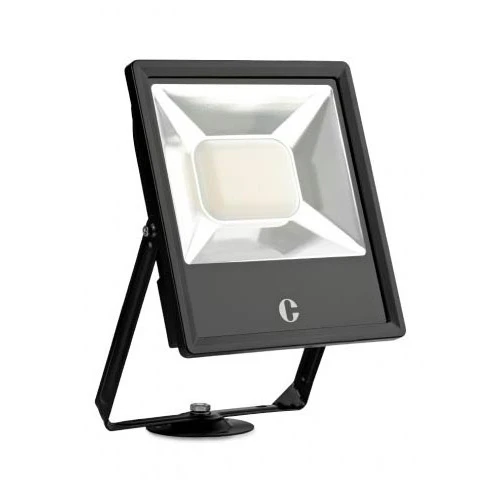

Floodlight Switchable IP65 100W Black Non PIR Tilt-Twist-Turn
Part Number:
2501159063
MPN:
FL10BXCS
- Product Type:
- Coastal Floodlights
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Technical Data Sheet
Product Details
Product Details
Collingwood FL10 Colour Switchable LED Floodlight is a wide 120° beam angle and a unique 360° rotation, flicker-free floodlight is the ideal solution for outdoor use, lighting large areas, courtyards and entrances or for up lighting trees and buildings. With a market leading efficacy and contemporary black cast aluminium body, this colour switchable light is a versatile solution for your space.
- · Colour switchable between 3 colour temperatures
- · IP65 rated, meaning it provides optimum protection against the impacts of rainwater and general adverse weather conditions
- · High efficacy of up to 130lm/W, being the most energy efficient and providing cost savings over time
- · Approved for coastal areas with a salt mist protective paint and has marine grade 316 stainless steel fixings
- · Wide 120° beam angle, reducing the number of fittings per area required
- · Supplied with 1m cable
- · Approved for coastal areas with a salt mist protective paint and has marine grade 316 stainless steel fixings
- · Approved for coastal areas with a salt mist protective paint and has marine grade 316 stainless steel fixings
- · Approved for coastal areas with a salt mist protective paint and has marine grade 316 stainless steel fixings
- · Performs in even more extreme conditions from -40°C to +40°C
Technical Specifications
Technical Specifications
Downlight / spot luminaire / floodlight | |
| Housing colour | Black |
|---|---|
| Impact resistance (IK rating) | IK07 |
| Housing material | Aluminium |
| Number of lamps | 1 |
| Height/depth | 385 mm |
| Maximum system power | 100 W |
| Length | 90 mm |
| Unified Glare Rating (UGR) | 14 |
| Width | 235 mm |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Power factor | 9 |
| Nominal voltage | 220 - 240 V |
| Lamp power | - W |
| Colour temperature | 3000 - 6500 K |
| Rated ambient temperature acc. IEC62722-2-1 | - 40 °C |
| With movement sensor | No |
| Suitable for suspended mounting | No |
| With light sensor | No |
| Suitable for wall mounting | Yes |
| Control gear included | Yes |
| Suitable for recessed mounting | No |
| Luminaire may be covered with thermally insulating material | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Light source included | Yes |
| Dimming DMX | No |
| Dimming mains voltage modulation | No |
| Dimming RF | No |
| Dimming trailing edge | No |
| Dimming LineSwitch | No |
|---|---|
| Dimming leading edge | No |
| Dimming Zigbee | No |
| Dimming touch and dim | No |
| IFTTT support available | No |
| Fit for workplace acc. EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Brushed surface | No |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for ceiling mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Compatible with Apple HomeKit | No |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Dimming with push-button | No |
| Dimming programmable | No |
| Dimming DALI | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming potentiometer (integrated) | No |
| Dimming sine wave reduction | No |
| Dimming manufacturer's proprietary system | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Dimming DALI-2 | No |
