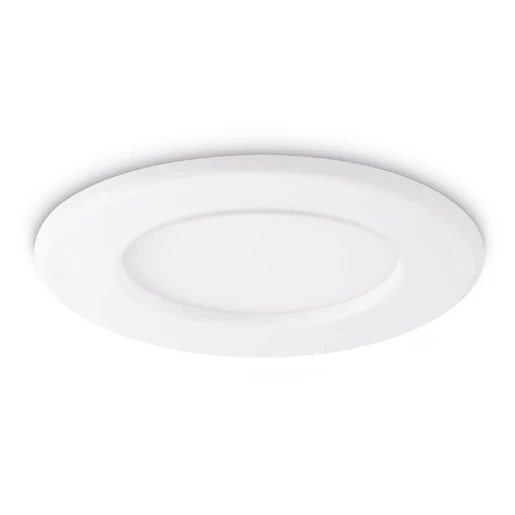

Polycarbonate construction 10W
Part Number:
2501243328
MPN:
JC73404
- Product Type:
- Round Bulkheads
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Manual
Technical Data Sheet
Product Details
Product Details
Three sizes available
- · Ultra low profile design
- · Non-dimmable
- · Ultra low profile design
- · Non-dimmable
Technical Specifications
Technical Specifications
Downlight / spot luminaire / floodlight | |
| Maximum system power | 10 W |
|---|---|
| Rated life time L70/B50 at 25 °C | 30000 h |
| Number of poles | 2 |
| Number of lamps | 1 |
| Height/depth | 26 mm |
| Outer diameter | 240 mm |
| Power factor | 0.9 |
| Colour temperature | 5700 - 5700 K |
| Nominal voltage | 220 - 240 V |
| Dimming DALI-2 | No |
| Rated luminous flux according to IEC 62722-2- 1 | 1000 - 1000 lm |
| Dimming 1-10 V | No |
| Replaceable control gear | Yes |
| Dimming 0-10 V | No |
| Dimming programmable | No |
| Dimming DMX | No |
| Dimming DSI | No |
|---|---|
| Dimming DALI | No |
| Dimming with push-button | No |
| Dimming trailing edge | No |
| Dimming leading edge | No |
| Suitable for ceiling mounting | Yes |
| Dimming RF | No |
| Dimming LineSwitch | No |
| Dimming Zigbee | No |
| Dimming touch and dim | No |
| Control gear included | Yes |
| Suitable for surface mounting | No |
| Suitable for suspended mounting | No |
| Suitable for recessed mounting | Yes |
| Luminaire may be covered with thermally insulating material | No |
| Light source included | Yes |
