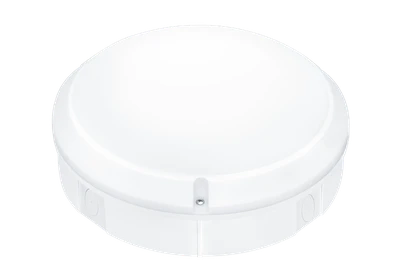

LED Bulkhead Lara 300mm IP65 20,5W 2200/1800/1200lm 830/35/40K
Part Number:
2501496077
MPN:
96635286
- Product Type:
- Round Bulkheads
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
LED Bulkhead with homogenous light emitting surface, FLEX technology, IP65 for indoor and outdoor applications. Total luminous flux: 2200 lm, Luminaire input power: 20.5 W, Lamp efficacy: 107 lm/W. Colour rendering Ra > 80, colour temperature 3000/3500/4000 K adjustable via switch. Lifetime: 50.000h L80. Chromaticity tolerance (initial MacAdam): 4, Impact strength: IK10, compatible with Plug&Play Emergency kit for 3 hour emergency conversion. Bezel and eyelid trim available as accessory. BESA compatible. Body: polycarbonate, white. Diffuser: polycarbonate, opal. Input power adjustable on site by 3 step (FLEX1: 2200 lm (20,5 W), FLEX 2: 1800 lm (17W), FLEX3: 1200 lm (11W)). For flex data on other colour temperatures please visit website. Dimensions: Ø300 x 75 mm, weight: 1.5 kg.
- · Rated luminous flux (IEC 62722-2-1): 2200
- · Colour Temperature: 3000
- · Protection Class: II
- · Degree of protection (IP): IP65
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Type of grid | None |
|---|---|
| Housing material | Plastic |
| Colour consistency (McAdam ellipse) | SDCM4 |
| Protection class according to IEC 61140 | II |
| Colour rendering index (CRI/Ra) | 80-89 |
| Lumen setting adjustable | Discrete positions |
| Cover material | Plastic opal |
| Housing colour | White |
| Colour of light | White |
| Colour temperature switchable | Discrete positions |
| Impact resistance (IK rating) | IK10 |
| Control gear | LED driver constant current |
| Filament test according to IEC 60695-2-11 | 850 C - 30 s |
| Photobiological safety according to EN 62471 | RG0 |
| Light distribution | Symmetric |
| Voltage type | AC |
| Light outlet | Direct |
| Light source type | LED non-replaceable |
| Width | - mm |
| Conductor cross section | - mm² |
| Recess width | - mm |
| Recess diameter | - mm |
| Outer diameter | 300 mm |
| Length | - mm |
| Power factor | 0.9 |
| Rated life time L70/B50 at 25 °C | 74000 h |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | 80 % |
| Max. number of luminaires per miniature circuit breaker C16 | 9 |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Max. number of luminaires per miniature circuit breaker B16 | 7 |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance (35,000 h at 25 °C) | 85 % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Flickering value Pst LM | - |
| Stroboscope effect value SVM | - |
| Unified Glare Rating (UGR) | 23 |
| Number of poles | - |
| Number of lamps | 1 |
| Height/depth | 75 mm |
| Maximum system power | 20.5 W |
| Recess height/depth | - mm |
| Recess length | - mm |
| Lamp power | - W |
|---|---|
| Colour temperature | 3000 - 4000 K |
| Nominal voltage | 220 - 240 V |
| Rated ambient temperature acc. IEC62722-2-1 | -20 - 40 °C |
| Nominal current | - - - mA |
| Suitable for suspended mounting | No |
| With movement sensor | No |
| Light source included | Yes |
| With light sensor | No |
| Suitable for emergency lighting | No |
| Control gear included | Yes |
| Suitable for recessed mounting | No |
| Suitable for surface mounting | Yes |
| Suitable for ceiling mounting | No |
| Constant luminous flux control | No |
| Suitable for light line configuration | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| With air slots | No |
| Luminaire may be covered with thermally insulating material | No |
| Fit for workplace acc. EN 12464-1 | No |
| Dimming 0-10 V | No |
| IFTTT support available | No |
| Replaceable control gear | Yes |
| Dimming DSI | No |
| Dimming DALI-2 | No |
| Bluetooth operated | No |
| Dimming with push-button | No |
| Compatible with Amazon Alexa | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Dimming touch and dim | No |
| Dimming Zigbee | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming DALI | No |
| Dimming 1-10 V | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming leading edge | No |
| Dimming trailing edge | No |
