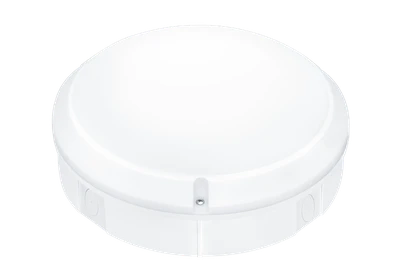

LED Bulkhead Lara 250mm IP65 11,5W 1200/1000/800lm 830/35/40K
Part Number:
2501496058
MPN:
96635284
- Product Type:
- Round Bulkheads
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
LED Bulkhead with homogenous light emitting surface, FLEX technology, IP65 for indoor and outdoor applications. Total luminous flux: 1200 lm, Luminaire input power: 11.5 W, Lamp efficacy: 104 lm/W. Colour rendering Ra > 80, colour temperature 3000/3500/4000 K adjustable via switch. Lifetime: 50.000h L80. Chromaticity tolerance (initial MacAdam): 4, Impact strength: IK10, compatible with Plug&Play Emergency kit for 3 hour emergency conversion. Bezel and eyelid trim available as accessory. BESA compatible. Body: polycarbonate, white. Diffuser: polycarbonate, opal. Input power adjustable on site by 3 step (FLEX1: 1200 lm (11,5W), FLEX 2: 1000 lm (9,5W), FLEX3: 800 lm (7,5W)). For flex data on other colour temperatures please visit website. Dimensions: Ø250 x 75 mm, weight: 1 kg.
- · Rated luminous flux (IEC 62722-2-1): 1200
- · Colour Temperature: 3000
- · Protection Class: II
- · Degree of protection (IP): IP65
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Type of grid | None |
|---|---|
| Housing material | Plastic |
| Colour consistency (McAdam ellipse) | SDCM4 |
| Protection class according to IEC 61140 | II |
| Colour rendering index (CRI/Ra) | 80-89 |
| Cover material | Plastic opal |
| Lumen setting adjustable | Discrete positions |
| Colour temperature switchable | Discrete positions |
| Housing colour | White |
| Colour of light | White |
| Impact resistance (IK rating) | IK10 |
| Control gear | LED driver constant current |
| Filament test according to IEC 60695-2-11 | 850 C - 30 s |
| Photobiological safety according to EN 62471 | RG0 |
| Light distribution | Symmetric |
| Light outlet | Direct |
| Voltage type | AC |
| Light source type | LED non-replaceable |
| Width | - mm |
| Length | - mm |
| Conductor cross section | - mm² |
| Outer diameter | 250 mm |
| Power factor | 0.83 |
| Rated life time L70/B50 at 25 °C | 74000 h |
| Maximum system power | 11.5 W |
| Number of poles | - |
| Number of lamps | 1 |
| Recess length | - mm |
| Height/depth | 75 mm |
| Recess diameter | - mm |
| Recess width | - mm |
| Stroboscope effect value SVM | - |
| Unified Glare Rating (UGR) | 23 |
| Flickering value Pst LM | - |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance (35,000 h at 25 °C) | 85 % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | 80 % |
| Recess height/depth | - mm |
| Max. number of luminaires per miniature circuit breaker B16 | 11 |
| Max. number of luminaires per miniature circuit breaker C16 | 13 |
| Lamp power | - W |
|---|---|
| Colour temperature | 3000 - 4000 K |
| Nominal voltage | 220 - 240 V |
| Rated ambient temperature acc. IEC62722-2-1 | -20 - 40 °C |
| Nominal current | - - - mA |
| With movement sensor | No |
| Suitable for suspended mounting | No |
| With light sensor | No |
| Light source included | Yes |
| Suitable for ceiling mounting | No |
| Suitable for emergency lighting | No |
| Dimming DALI-2 | No |
| Dimming DSI | No |
| Replaceable control gear | Yes |
| Compatible with Amazon Alexa | No |
| Bluetooth operated | No |
| Constant luminous flux control | No |
| Suitable for light line configuration | No |
| With air slots | No |
| Luminaire may be covered with thermally insulating material | No |
| Fit for workplace acc. EN 12464-1 | No |
| Dimming 1-10 V | No |
| Dimming 0-10 V | No |
| Dimming manufacturer's proprietary system | No |
| Dimming potentiometer (integrated) | No |
| Dimming DALI | No |
| Dimming DMX | No |
| IFTTT support available | No |
| Control gear included | Yes |
| Suitable for surface mounting | Yes |
| Suitable for recessed mounting | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Dimming with push-button | No |
| Dimming Zigbee | No |
| Dimming touch and dim | No |
| Dimming RF | No |
| Dimming leading edge | No |
| Dimming programmable | No |
| Dimming trailing edge | No |
| Dimming mains voltage modulation | No |
