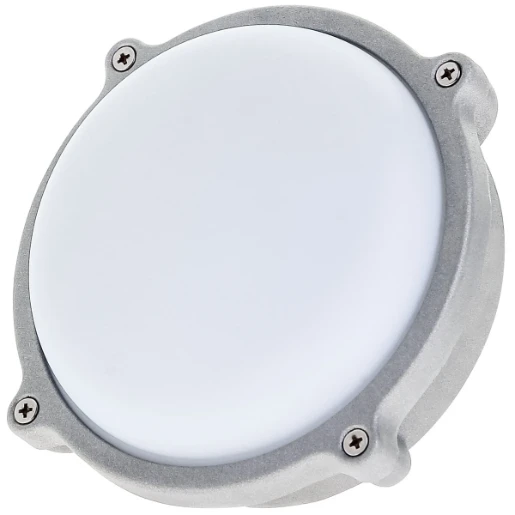

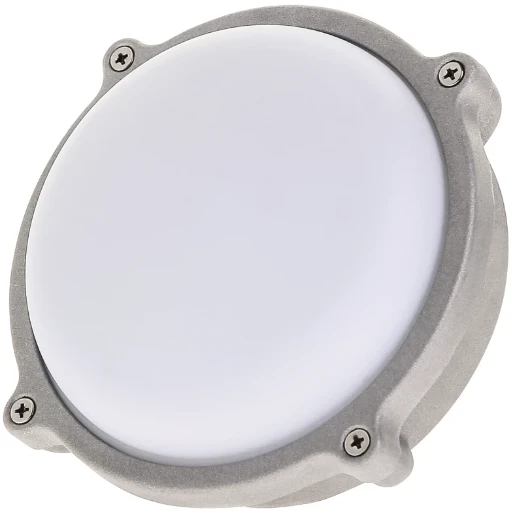

Bulkhead LED Energy Saving Round Super Slimline 7W 450lm IP65
Part Number:
2500683197
MPN:
LEDBHR7W
- Product Type:
- Round Bulkheads
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Technical Data Sheet
Product Details
Product Details
Energy saving alternative to standard bulkhead lights. Super-Slim die cast design with a tough exterior making them ideal for industrial, commercial and home installations.
- · Robust super-slim die cast design
- · Ideal for industrial, commercial and home installations
- · Wide light diffusion pattern
- · Powerful and energy saving alternative to standard bulkhead lights
- · IP65 weatherproof rating
- · 7W LED equivalent to 40W of halogen lighting
- · Instantly bright
- · Tough polycarbonate lens exterior
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Cover material | Plastic opal |
|---|---|
| Connection type | Screwed terminal |
| Protection class according to IEC 61140 | I |
| Beam angle | Extreme wide beam >80° |
| Housing colour | Silver |
| Colour temperature switchable | No |
| Degree of protection (IP), front side | IP65 |
| Beam angle adjustable | No |
| Voltage type | AC |
| Light source type | LED non-replaceable |
| Housing material | Aluminium |

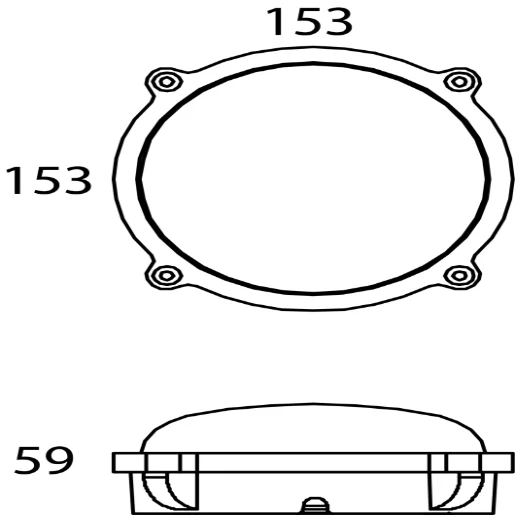

| Outer diameter | 59 mm |
| Length | 153 mm |
| Rated life time L70/B50 at 25 °C | - h |
| Maximum system power | 7 W |
| Recess length | - mm |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Recess height/depth | - mm |
| Lumen maintenance (35,000 h at 25 °C) | - % |
| Height/depth | 153 mm |
| Recess width | - mm |
| Nominal voltage | 230 - 230 V |
| Colour temperature | 5000 - 5000 K |
| Light source included | Yes |
| Suitable for recessed mounting | No |
| Control gear included | No |
| Suitable for surface mounting | Yes |
| Suitable for ceiling mounting | Yes |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Constant luminous flux control | No |
|---|---|
| Dimming trailing edge | No |
| Dimming leading edge | No |
| Dimming Zigbee | No |
| IFTTT support available | No |
| Compatible with Apple HomeKit | No |
| Dimming 1-10 V | No |
| Dimming 0-10 V | No |
| Dimming DALI | No |
| Dimming programmable | No |
| Luminaire may be covered with thermally insulating material | No |
| Fit for workplace acc. EN 12464-1 | No |
| Dimming touch and dim | No |
| Dimming RF | No |
| Dimming mains voltage modulation | No |
| Dimming with push-button | No |
| Dimming DSI | No |
| Dimming DMX | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| With movement sensor | No |
| Suitable for suspended mounting | No |
| Suitable for wall mounting | Yes |
| With light sensor | No |
| Replaceable control gear | No |
| Dimming DALI-2 | No |
