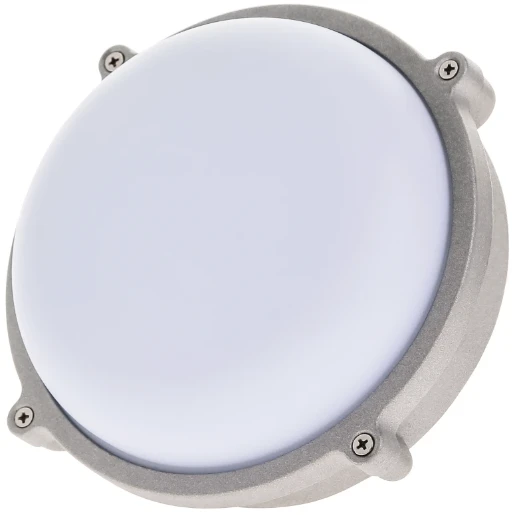

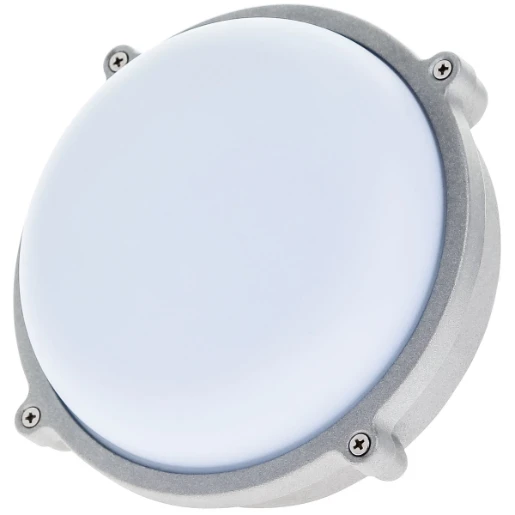

Bulkhead LED Energy Saving Round Super Slimline 15W 900lm IP65
Part Number:
2500683198
MPN:
LEDBHR15W
- Product Type:
- Round Bulkheads
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Manual
Technical Data Sheet
Product Details
Product Details
Timeguard Bulkhead Light is a powerful and energy saving alternative to standard bulkhead lights. Instantly bright like halogens but with only 20% of the running costs. Its super-slim die cast design with a tough exterior makes it ideal for industrial, commercial and home installations.
- · Robust die cast housing
- · Wide light diffusion pattern
- · Tough polycarbonate lens
- · IP65 protection rating
- · Equivalent to 80W of halogen lighting
- · Robust die cast housing with tough polycarbonate lens suitable for industrial, commercial and home installations
- · IP65 weatherproof rating
- · A powerful and energy saving alternative to standard bulkhead lights
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Cover material | Plastic opal |
|---|---|
| Connection type | Screwed terminal |
| Beam angle | Extreme wide beam >80° |
| Protection class according to IEC 61140 | I |
| Colour temperature switchable | No |
| Housing colour | Silver |
| Degree of protection (IP), front side | IP65 |
| Beam angle adjustable | No |
| Housing material | Aluminium |
| Light source type | LED non-replaceable |

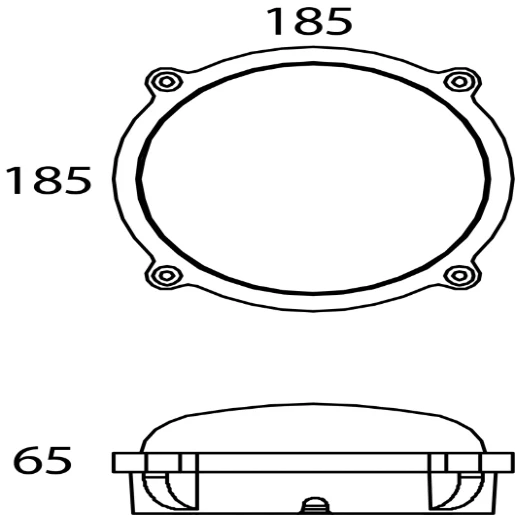

| Width | 185 mm |
| Outer diameter | - mm |
| Length | 65 mm |
| Lumen maintenance (35,000 h at 25 °C) | - % |
| Height/depth | 185 mm |
| Recess width | - mm |
| Rated life time L70/B50 at 25 °C | - h |
| Recess length | - mm |
| Maximum system power | 15 W |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Recess height/depth | - mm |
| Nominal voltage | 230 - 230 V |
| Colour temperature | 5000 - 5000 K |
| Suitable for suspended mounting | No |
| Light source included | Yes |
| With movement sensor | No |
| Control gear included | No |
| Suitable for surface mounting | Yes |
| Suitable for ceiling mounting | Yes |
| With light sensor | No |
|---|---|
| Suitable for recessed mounting | No |
| Suitable for wall mounting | Yes |
| Constant luminous flux control | No |
| Luminaire may be covered with thermally insulating material | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Fit for workplace acc. EN 12464-1 | No |
| IFTTT support available | No |
| Dimming DSI | No |
| Dimming DMX | No |
| Dimming RF | No |
| Dimming mains voltage modulation | No |
| Dimming touch and dim | No |
| Dimming Zigbee | No |
| Dimming leading edge | No |
| Dimming trailing edge | No |
| Replaceable control gear | No |
| Dimming DALI-2 | No |
| Compatible with Amazon Alexa | No |
| Compatible with Apple HomeKit | No |
| Dimming DALI | No |
| Dimming programmable | No |
| Dimming with push-button | No |
| Compatible with Google Assistant | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming 1-10 V | No |
| Dimming 0-10 V | No |
