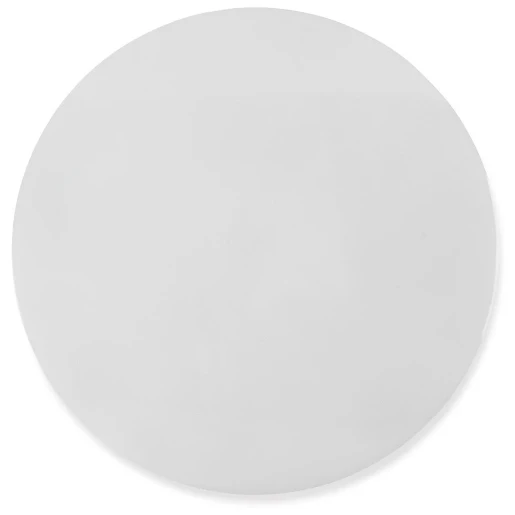

10W LED Tri-Colour Bulkhead with Microwave Sensor
Part Number:
2501310603
MPN:
WL9410MCS
- Product Type:
- Round Bulkheads
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
The IP44 bulkhead range is designed and developed for use as a general purpose fitting and commonly used in kitchens, bathrooms, corridors and stairwells. The product is colour switchable via a switch under the back cover, with 3000K, 4000K and 6500K options. Microwave sensor and emergency pack options are also available, further extending the scope of suitable installation environments.
- · Colour switchable, via a switch under the back cover
- · Up to 111lm/W efficacy offers low lifetime running costs
- · IP44 rating makes it suitable for use in kitchens and bathrooms
- · Diffuser design makes a halo effect on the wall or ceiling
- · Easy access push fit terminals
- · Innovative clip-on bracket design
- · Straight to mains
- · IP44 grommets included
- · Microwave step-dim dusk-dawn sensor, which is programmable by dip switches, saving energy by having it on only when needed
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Housing material | Plastic |
|---|---|
| Degree of protection (IP), front side | IP44 |
| Housing colour | White |
| Impact resistance (IK rating) | IK07 |
| Number of lamps | 1 |
| Height/depth | 60 mm |
| Power factor | 5 |
| Rated life time L70/B50 at 25 °C | 35000 h |
| Maximum system power | 10 W |
| Width | 300 mm |
| Nominal voltage | 220 - 240 V |
| Length | 300 mm |
| Rated ambient temperature acc. IEC62722-2-1 | 20 °C |
| Colour temperature | 3000 - 6500 K |
| Light source included | Yes |
| With light sensor | No |
| Suitable for emergency lighting | No |
| With movement sensor | Yes |
|---|---|
| IFTTT support available | No |
| Compatible with Apple HomeKit | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming 0-10 V | No |
| Dimming trailing edge | No |
| Dimming leading edge | No |
| Dimming Zigbee | No |
| Bluetooth operated | No |
| Dimming DSI | No |
| Dimming RF | No |
| Dimming DMX | No |
| Dimming DALI-2 | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
