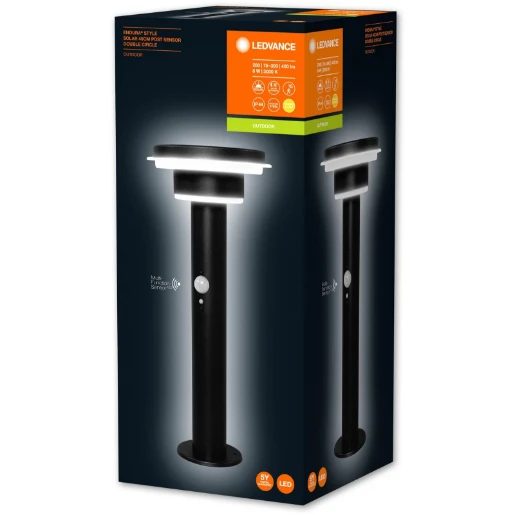

ENDURA® STYLE SOLAR DOUBLE CIRCLE Post Double Circle 40CM 6W BK
Part Number:
2501347879
MPN:
4058075392748
- Product Type:
- Bulkheads
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Details
Product Details
Operating mode 2: light continous on with 75 lumen (Max. 8 hours at full charge), switches to 300 lumen when moving (Max. 100 times lit at full charge)
- · Solar powered outdoor LED luminaire
- · PIR motion detector and daylight sensor
- · Operating mode 1: light continous on with 200 lumen (Max. 2.5 hours at full charge)
- · Operating mode 1: light continous on with 200 lumen (Max. 2.5 hours at full charge)
- · Operating mode 2: light continous on with 75 lumen (Max. 8 hours at full charge), switches to 300 lumen when moving (Max. 100 times lit at full charge)
- · Operating mode 3: light off, switches to 400 lumen when moving (Max. 100 times lit at full charge)
- · Battery charging via solar panel
- · Battery technology: lithium-ion
- · Stainless steel housing
- · Demand based lighting and energy saving thanks to motion and daylight sensor
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Control gear | Electronic ballast |
|---|---|
| Impact resistance (IK rating) | IK03 |
| Colour rendering index (CRI/Ra) | 80-89 |
| Colour consistency (McAdam ellipse) | SDCM6 |
| Protection class according to IEC 61140 | III |
| Cover material | Plastic opal |
| Photobiological safety according to EN 62471 | RG1 |
| Type of grid | Matt |
| Housing colour | Black |
| Voltage type | DC |
| Colour of light | White |
| Lumen setting adjustable | No |
| Colour temperature switchable | No |
| Housing material | Stainless steel |
| Beam angle adjustable | No |
| Light outlet | Direct |
| Outer diameter | 178 mm |
| Width | - mm |
| Conductor cross section | - mm² |
| Number of poles | 2 |
| Height/depth | 400 mm |
| Length | 178 mm |
| Recess diameter | - mm |
| Recess width | - mm |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Flickering value Pst LM | - |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Stroboscope effect value SVM | - |
| Unified Glare Rating (UGR) | - |
| Max. number of luminaires per miniature circuit breaker C16 | - |
| Power factor | - |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Max. number of luminaires per miniature circuit breaker B16 | - |
| Lumen maintenance (35,000 h at 25 °C) | - % |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Maximum system power | 6 W |
| Recess height/depth | - mm |
| Recess length | - mm |
| Number of lamps | - |
| Lamp power | - W |
| Nominal voltage | 3 - 2 V |
| Nominal current | 1700 - 1700 mA |
|---|---|
| Colour temperature | 3000 - 3000 K |
| Rated ambient temperature acc. IEC62722-2-1 | -20 - 40 °C |
| With movement sensor | Yes |
| Suitable for recessed mounting | No |
| Suitable for ceiling mounting | No |
| Suitable for suspended mounting | No |
| Compatible with Casambi | No |
| Replaceable control gear | No |
| Bluetooth operated | No |
| Dimming with push-button | No |
| IFTTT support available | Yes |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Light source included | Yes |
| Constant luminous flux control | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Suitable for emergency lighting | No |
| With air slots | No |
| Luminaire may be covered with thermally insulating material | No |
| Dimming DALI-2 | No |
| Dimming DALI | No |
| Dimming 1-10 V | No |
| Dimming 0-10 V | No |
| Control gear included | Yes |
| Suitable for light line configuration | No |
| Fit for workplace acc. EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| With light sensor | Yes |
| Suitable for wall mounting | Yes |
| Compatible with Apple HomeKit | No |
| Dimming touch and dim | No |
| Dimming Zigbee | No |
| Dimming RF | No |
| Dimming manufacturer's proprietary system | No |
| Dimming potentiometer (integrated) | No |
| Dimming DSI | No |
| Dimming DMX | No |
| Dimming leading edge | No |
| Dimming programmable | No |
| Dimming trailing edge | No |
| Dimming mains voltage modulation | No |
