Product Details
Product Details

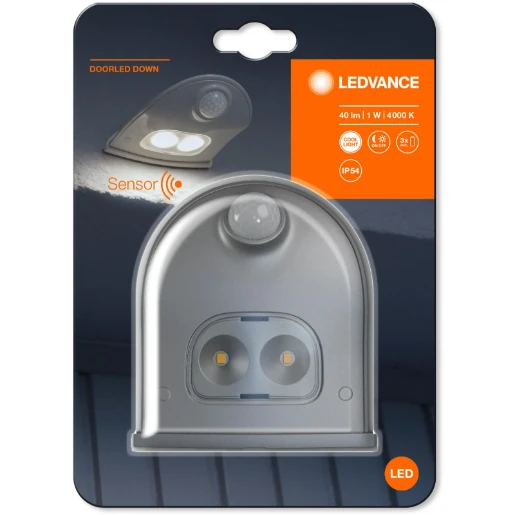

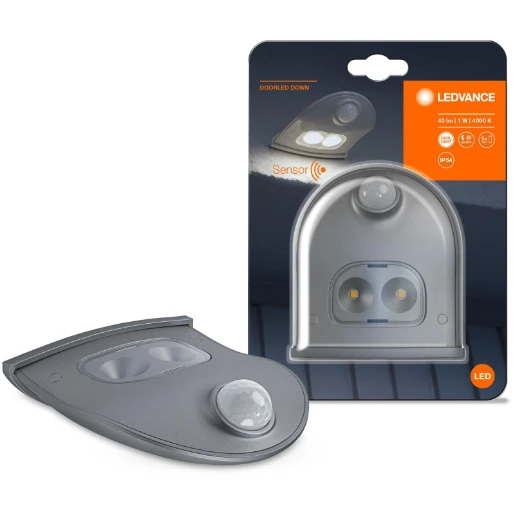

Mobile luminaire for entrance areas, light outlet down. Product features: Integrated light and motion sensor. Available in two housing colors. Type of protection: IP54.Product benefits: Attractive and functional design. Economical operation due to low power consumption. Easy and quick installation. Accessories for flexible mounting options included. Areas of application: For a very large range of uses. Indoor and outdoor. Entrance lighting. Corridors. Patios, balconies.Equipment / Accessories: Batteries included: 4x 1.5 V LR6 (AA).
- · Integrated light and motion sensor
- · Available in two housing colors
- · Attractive and functional design
- · Attractive and functional design
- · Economical operation due to low power consumption
- · Easy and quick installation
- · Accessories for flexible mounting options included
- · For a very large range of uses
- · Indoor and outdoor
- · Entrance lighting
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Type of grid | None |
|---|---|
| Control gear | Electronic ballast |
| Housing material | Plastic |
| Colour rendering index (CRI/Ra) | 80-89 |
| Colour consistency (McAdam ellipse) | SDCM6 |
| Protection class according to IEC 61140 | III |
| Colour of light | White |
| Voltage type | DC |
| Beam angle adjustable | No |
| Housing colour | Silver |
| Colour temperature switchable | No |
| Lumen setting adjustable | No |
| Length | 102.5 mm |
| Outer diameter | - mm |
| Width | 92.4 mm |
| Conductor cross section | - mm² |
| Height/depth | 36.5 mm |
| Power factor | - |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance (35,000 h at 25 °C) | - % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Unified Glare Rating (UGR) | - |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Max. number of luminaires per miniature circuit breaker B16 | - |
| Max. number of luminaires per miniature circuit breaker C16 | - |
| Rated life time L70/B50 at 25 °C | 25000 h |
| Flickering value Pst LM | - |
| Stroboscope effect value SVM | - |
| Number of lamps | - |
| Recess height/depth | - mm |
| Maximum system power | 0.95 W |
| Recess length | - mm |
| Number of poles | - |
| Recess width | - mm |
| Recess diameter | - mm |
| Lamp power | - W |
| Nominal voltage | 4 - 5 V |
| Nominal current | 210 - 210 mA |
| Colour temperature | 4000 - 4000 K |
| Rated ambient temperature acc. IEC62722-2-1 | -10 - 40 °C |
|---|---|
| Suitable for ceiling mounting | No |
| Suitable for suspended mounting | No |
| With light sensor | Yes |
| With movement sensor | Yes |
| Suitable for recessed mounting | No |
| Constant luminous flux control | No |
| Fit for workplace acc. EN 12464-1 | No |
| Suitable for emergency lighting | No |
| Control gear included | Yes |
| Suitable for surface mounting | Yes |
| Suitable for light line configuration | No |
| Suitable for wall mounting | Yes |
| Light source included | Yes |
| Luminaire may be covered with thermally insulating material | No |
| With air slots | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Dimming 0-10 V | No |
| Dimming DSI | No |
| Dimming DMX | No |
| Dimming DALI | No |
| Dimming 1-10 V | No |
| Dimming manufacturer's proprietary system | No |
| Dimming potentiometer (integrated) | No |
| Dimming trailing edge | No |
| Dimming mains voltage modulation | No |
| Dimming leading edge | No |
| Dimming DALI-2 | No |
| Dimming programmable | No |
| Dimming RF | No |
| Bluetooth operated | No |
| Dimming with push-button | No |
| Dimming touch and dim | No |
| Dimming Zigbee | No |
| Replaceable control gear | No |
| Compatible with Casambi | No |
| IFTTT support available | Yes |
| Compatible with Amazon Alexa | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
