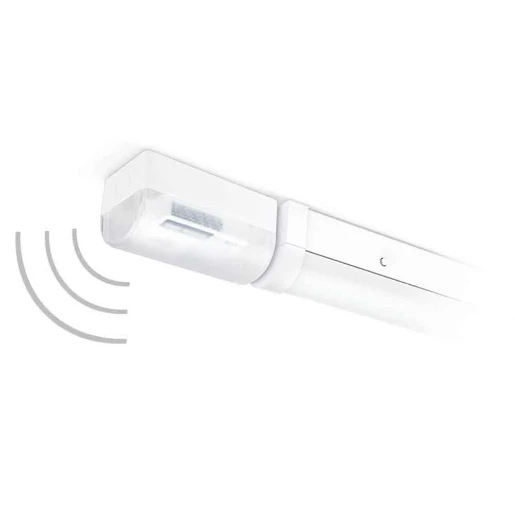

Ultra efficient, up to 120 lumens per circuit watt
Part Number:
2501243393
MPN:
JC71743MW
- Product Type:
- LED Battens
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Manual
Technical Data Sheet
Product Details
Product Details
Suitable for extreme operating temperatures -10C to 50C
- · Intelligent press release buttons for simple installation
- · Press fit terminals
- · Suspended LED tray for easy installation
- · Press fit terminals loop in loop out
- · Rear and end conduit entry points
- · Microwave dimmable and on/off options
Technical Specifications
Technical Specifications
Batten luminaire | |
| Power factor | 0.98 |
|---|---|

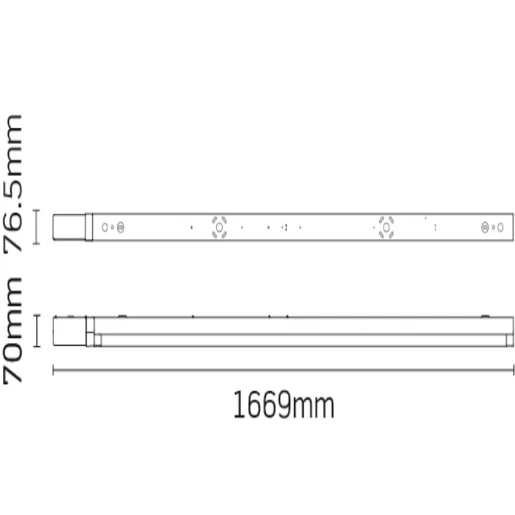

| Width | 70 mm |
| Maximum system power | 37 W |
| Height/depth | 76.5 mm |
| Length | 1670 mm |
| Number of poles | 3 |
| Nominal voltage | 220 - 240 V |
| With movement sensor | Yes |
| Colour temperature | 4000 - 4000 K |
| Light source included | Yes |
| Suitable for emergency lighting | No |
| Control gear included | Yes |
| Dimming trailing edge | No |
| Dimming leading edge | No |
| Dimming LineSwitch | No |
| Electrical connection with connector system | No |
| Dimming DMX | No |
|---|---|
| Dimming mains voltage modulation | No |
| Dimming programmable | No |
| Dimming DALI | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming Zigbee | No |
| Dimming manufacturer's proprietary system | No |
| Dimming touch and dim | No |
| Dimming RF | No |
| Dimming DSI | No |
| Dimming with push-button | No |
| Replaceable control gear | Yes |
| Dimming sine wave reduction | No |
| Luminaire may be covered with thermally insulating material | No |
