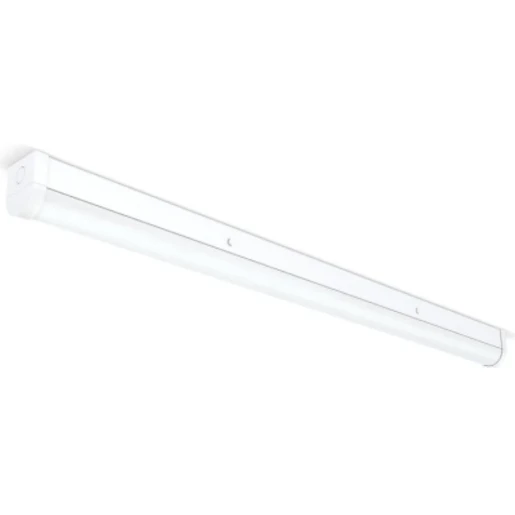

Luminaire Batten LED Twin 4000K IP20 82W 9800lm 6Ft
Part Number:
2501162831
MPN:
JC71746
- Product Type:
- LED Battens
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Manual
Manual
Technical Data Sheet
Product Details
Product Details
Skypack QR High Output uses an innovative dual button press release buttons for simple installation, the side buttons release the full led tray for ease of access to the mounting points and wiring connections. Ultra efficient up to 120 lumens per circuit Watt, suspended led tray for easy installation and press fit terminals loop in loop out. Rear and end conduit entry points and emergency and microwave dimmable options
- · Intelligent press release buttons for simple installation
- · Ultra efficient up to 120 lumens per circuit Watt
- · Suspended LED tray for easy installation
- · Press fit terminals loop in loop out
- · Rear and end conduit entry points
- · Microwave dimmable and on/off options
Technical Specifications
Technical Specifications
Batten luminaire | |

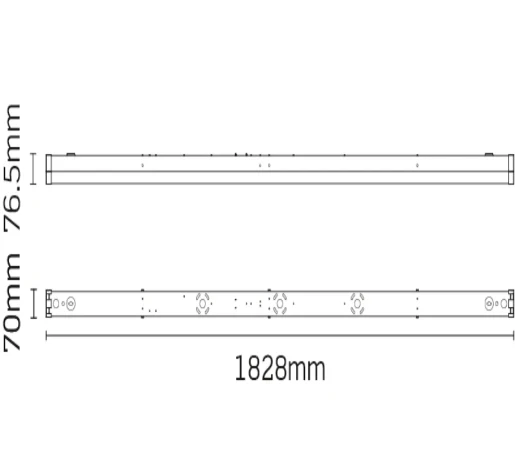

| Length | 1828 mm |
|---|---|
| Number of poles | 3 |
| Width | 70 mm |
| Power factor | 0.9 |
| Maximum system power | 82 W |
| Number of lamps | 2 |
| Nominal voltage | 220 - 240 V |
| Height/depth | 76.5 mm |
| Rated luminous flux according to IEC 62722-2- 1 | 9800 - 9800 lm |
| Colour temperature | 4000 - 4000 K |
| Suitable for emergency lighting | No |
| Light source included | Yes |
| Dimming sine wave reduction | No |
| Replaceable control gear | Yes |
| Dimming with push-button | No |
| With movement sensor | No |
| Control gear included | Yes |
| Dimming trailing edge | No |
|---|---|
| Dimming leading edge | No |
| Dimming mains voltage modulation | No |
| Dimming LineSwitch | No |
| Electrical connection with connector system | No |
| Luminaire may be covered with thermally insulating material | No |
| Dimming DMX | No |
| Dimming DALI | No |
| Dimming 0-10 V | No |
| Dimming programmable | No |
| Dimming 1-10 V | No |
| Dimming manufacturer's proprietary system | No |
| Dimming Zigbee | No |
| Dimming touch and dim | No |
| Dimming RF | No |
| Dimming DSI | No |
