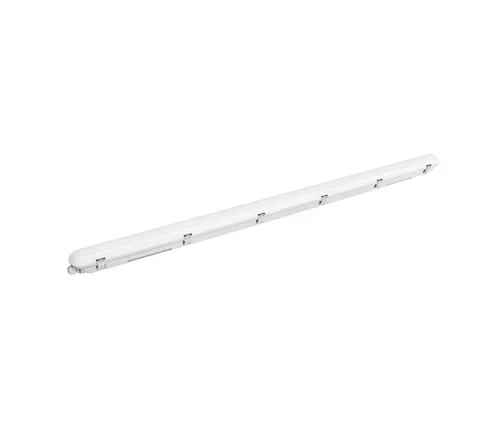

Ledinaire Waterproof 5ft Twin 53W 4000K
Part Number:
2501496039
MPN:
911401855182
- Product Type:
- LED Battens
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
The Ledinaire Waterproof range provides maximum performance and durability at great value. As an off-the-shelf LED luminaire solution for all your everyday needs, it can be deployed in a wide variety of locations.
- · Luminous Flux 6,800 lumen
- · Correlated Color Temperature (Nom) 4000 K
- · Luminous Efficacy (rated) (Nom) 125 lm/W
- · Color rendering index (CRI) 80
- · IK08 (5J vandal protection)
- · Wide 120 degree beam
- · Natural 4000k white light
- · -20 to +40 degree operating temperature
- · 5 year guarantee
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Conductor cross section | 0.5 mm² |
|---|---|
| Outer diameter | - mm |
| Width | 71 mm |
| Recess diameter | - mm |
| Recess width | - mm |
| Power factor | 0.9 |
| Length | 1507 mm |
| Rated life time L70/B50 at 25 °C | 30000 h |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | 7.5 % |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance (35,000 h at 25 °C) | - % |
| Recess height/depth | - mm |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | 65 % |
| Max. number of luminaires per miniature circuit breaker C16 | 51 |
| Stroboscope effect value SVM | 2 |
| Unified Glare Rating (UGR) | 30 |
| Flickering value Pst LM | 1 |
| Max. number of luminaires per miniature circuit breaker B16 | 30 |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Number of poles | 3 |
| Height/depth | 74 mm |
| Recess length | - mm |
| Maximum system power | 53 W |
| Number of lamps | - |
| Lamp power | 53 - 53 W |
| Nominal current | 221 - 241 mA |
| Colour temperature | 4000 - 4000 K |
| Nominal voltage | 220 - 240 V |
| Rated ambient temperature acc. IEC62722-2-1 | 25 - 25 °C |
| Light source included | Yes |
| Suitable for ceiling mounting | Yes |
| Suitable for light line configuration | No |
| Fit for workplace acc. EN 12464-1 | No |
| Luminaire may be covered with thermally insulating material | No |
|---|---|
| Control gear included | Yes |
| Suitable for emergency lighting | No |
| Suitable for recessed mounting | No |
| With light sensor | No |
| With movement sensor | No |
| Suitable for suspended mounting | Yes |
| Compatible with Google Assistant | No |
| Dimming touch and dim | No |
| Dimming RF | No |
| Dimming 1-10 V | No |
| Dimming leading edge | No |
| IFTTT support available | No |
| Suitable for surface mounting | Yes |
| With air slots | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | Yes |
| Dimming Zigbee | No |
| Dimming trailing edge | No |
| Dimming DALI-2 | No |
| Replaceable control gear | Yes |
| Dimming 0-10 V | No |
| Dimming DSI | No |
| Dimming manufacturer's proprietary system | No |
| Constant luminous flux control | No |
| Dimming mains voltage modulation | No |
| Dimming programmable | No |
| Dimming potentiometer (integrated) | No |
| Compatible with Amazon Alexa | No |
| Compatible with Apple HomeKit | No |
| Dimming with push-button | No |
| Dimming DMX | No |
| Bluetooth operated | No |
| Dimming DALI | No |
