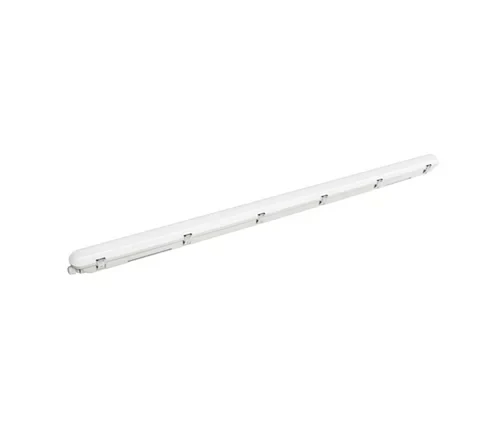

Ledinaire Waterproof 4ft Single 22W 4000K
Part Number:
2501496045
MPN:
911401854882
- Product Type:
- LED Battens
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
The Ledinaire Waterproof range provides maximum performance and durability at great value. As an off-the-shelf LED luminaire solution for all your everyday needs, it can be deployed in a wide variety of locations.
- · Luminous Flux 2,400 lumen
- · Correlated Color Temperature (Nom) 4000 K
- · Luminous Efficacy (rated) (Nom) 110 lm/W
- · Color rendering index (CRI) 80
- · IK08 (5J vandal protection)
- · Wide 120 degree beam
- · Natural 4000k white light
- · -20 to +40 degree operating temperature
- · 5 year guarantee
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Outer diameter | - mm |
|---|---|
| Width | 71 mm |
| Conductor cross section | 0.5 mm² |
| Recess diameter | - mm |
| Height/depth | 74 mm |
| Recess length | - mm |
| Length | 1207 mm |
| Maximum system power | 22 W |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | 65 % |
| Recess height/depth | - mm |
| Number of lamps | - |
| Number of poles | 3 |
| Recess width | - mm |
| Power factor | 0.9 |
| Stroboscope effect value SVM | 2 |
| Lumen maintenance (35,000 h at 25 °C) | - % |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Max. number of luminaires per miniature circuit breaker B16 | 60 |
| Rated life time L70/B50 at 25 °C | 30000 h |
| Max. number of luminaires per miniature circuit breaker C16 | 102 |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | 7.5 % |
| Flickering value Pst LM | 1 |
| Unified Glare Rating (UGR) | 27 |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Lamp power | 22 - 22 W |
| Nominal current | 92 - 100 mA |
| Nominal voltage | 220 - 240 V |
| Colour temperature | 4000 - 4000 K |
| Rated ambient temperature acc. IEC62722-2-1 | 25 - 25 °C |
| Dimming potentiometer (integrated) | No |
| Light source included | Yes |
| Constant luminous flux control | No |
| Suitable for light line configuration | No |
| Suitable for recessed mounting | No |
|---|---|
| With movement sensor | No |
| Suitable for suspended mounting | Yes |
| With light sensor | No |
| Suitable for emergency lighting | No |
| IFTTT support available | No |
| Suitable for ceiling mounting | Yes |
| Dimming manufacturer's proprietary system | No |
| Dimming DMX | No |
| Compatible with Apple HomeKit | No |
| Suitable for surface mounting | Yes |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | Yes |
| With air slots | No |
| Fit for workplace acc. EN 12464-1 | No |
| Luminaire may be covered with thermally insulating material | No |
| Control gear included | Yes |
| Replaceable control gear | Yes |
| Dimming 0-10 V | No |
| Dimming with push-button | No |
| Dimming 1-10 V | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Dimming DSI | No |
| Bluetooth operated | No |
| Dimming DALI | No |
| Dimming touch and dim | No |
| Dimming trailing edge | No |
| Dimming mains voltage modulation | No |
| Dimming programmable | No |
| Dimming leading edge | No |
| Dimming RF | No |
| Dimming Zigbee | No |
| Dimming DALI-2 | No |
