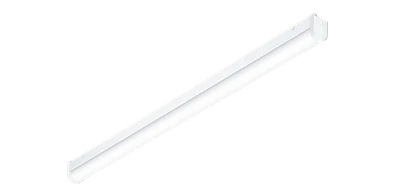

LED Batten Poppy 1800mm IP20 60W 6500lm 4000K
Part Number:
2501145887
MPN:
96631262
- Product Type:
- LED Battens
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
A fast install and versatile IP20 batten with press release buttons for quick opening and installation. Reliable integrated LED technology, ensuring maintenance-free installation and a long lifetime. Homogeneous illumination. Direct replacement for conventional battens in terms of light performance and length. Piano-key terminals, enabling loop-in loop-out. ENEC certified driver. Body: sheet metal, white finish (RAL 9002). Diffuser: polycarbonate, opal. End caps: polycarbonate, white (RAL 9002). Weight: 4,3 kg
- · Rated luminous flux (IEC 62722-2-1): 6500
- · Colour Temperature: 4000
- · Protection Class: I
- · Degree of protection (IP): IP20
- · ENEC certified driver
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Type of grid | None |
|---|---|
| Colour rendering index (CRI/Ra) | 80-89 |
| Housing material | Steel |
| Cover material | Plastic opal |
| Impact resistance (IK rating) | IK08 |
| Housing colour | White |
| Colour of light | White |
| Protection class according to IEC 61140 | I |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Control gear | LED driver constant current |
| Filament test according to IEC 60695-2-11 | 850 C - 30 s |
| Photobiological safety according to EN 62471 | RG0 |
| Lumen setting adjustable | No |
| Light distribution | Symmetric |
| Colour temperature switchable | No |
| Degree of protection (IP), front side | IP20 |
| Light outlet | Direct |
| Voltage type | AC |
| Light source type | LED non-replaceable |
| Outer diameter | - mm |
| Conductor cross section | - mm² |
| Recess width | - mm |
| Height/depth | 77 mm |
| Width | 62 mm |
| Length | 1722 mm |
| Power factor | 0.9 |
| Maximum system power | 60 W |
| Recess height/depth | - mm |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Max. number of luminaires per miniature circuit breaker C16 | 50 |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | 70 % |
| Flickering value Pst LM | - |
| Stroboscope effect value SVM | - |
| Max. number of luminaires per miniature circuit breaker B16 | 50 |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance (35,000 h at 25 °C) | 75 % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Unified Glare Rating (UGR) | 26 |
| Number of poles | - |
| Recess diameter | - mm |
| Recess length | - mm |
| Number of lamps | 1 |
|---|---|
| Lamp power | - W |
| Nominal voltage | 220 - 240 V |
| Nominal current | - - - mA |
| Colour temperature | 4000 - 4000 K |
| Rated ambient temperature acc. IEC62722-2-1 | - °C |
| Suitable for suspended mounting | No |
| With movement sensor | No |
| Light source included | Yes |
| With light sensor | No |
| Suitable for emergency lighting | No |
| Suitable for ceiling mounting | Yes |
| Constant luminous flux control | No |
| Control gear included | Yes |
| Suitable for recessed mounting | No |
| Suitable for surface mounting | Yes |
| IFTTT support available | No |
| Suitable for light line configuration | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| With air slots | No |
| Luminaire may be covered with thermally insulating material | No |
| Fit for workplace acc. EN 12464-1 | No |
| Dimming 0-10 V | No |
| Dimming DALI | No |
| Dimming manufacturer's proprietary system | No |
| Dimming 1-10 V | No |
| Dimming mains voltage modulation | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming with push-button | No |
| Dimming Zigbee | No |
| Dimming touch and dim | No |
| Dimming leading edge | No |
| Dimming trailing edge | No |
| Dimming programmable | No |
| Dimming RF | No |
| Replaceable control gear | Yes |
| Dimming DSI | No |
| Bluetooth operated | No |
| Dimming DALI-2 | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
