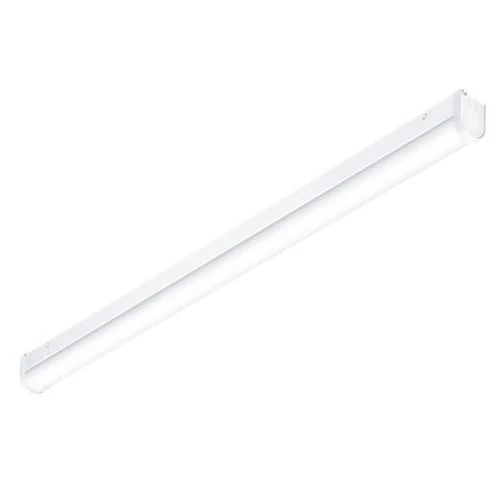

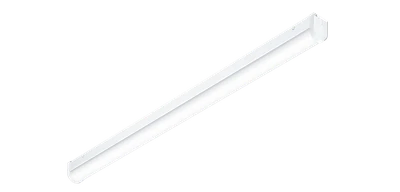

LED Batten Poppy 1800mm IP20 60W 6500lm 4000K E3
Part Number:
2501145890
MPN:
96631272
- Product Type:
- LED Battens
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
A fast install and versatile IP20 batten with press release buttons for quick opening and installation. Reliable integrated LED technology, ensuring maintenance-free installation and a long lifetime. Homogeneous illumination. Direct replacement for conventional battens in terms of light performance and length. Piano-key terminals, enabling loop-in loop-out. ENEC certified driver. 3 hour emergency lighting. Body: sheet metal, white finish (RAL 9002). Diffuser: polycarbonate, opal. End caps: polycarbonate, white (RAL 9002). Weight: 5 kg
- · Rated luminous flux (IEC 62722-2-1): 6500
- · Colour Temperature: 4000
- · Protection Class: I
- · Degree of protection (IP): IP20
- · ENEC certified driver
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Type of grid | None |
|---|---|
| Colour rendering index (CRI/Ra) | 80-89 |
| Housing material | Steel |
| Cover material | Plastic opal |
| Impact resistance (IK rating) | IK08 |
| Housing colour | White |
| Control gear | LED driver constant current |
| Light distribution | Symmetric |
| Filament test according to IEC 60695-2-11 | 850 C - 30 s |
| Colour temperature switchable | No |
| Degree of protection (IP), front side | IP20 |
| Light outlet | Direct |
| Voltage type | AC |
| Light source type | LED non-replaceable |
| Conductor cross section | - mm² |
| Recess width | - mm |
| Outer diameter | - mm |
| Protection class according to IEC 61140 | I |
| Width | 62 mm |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Length | 1722 mm |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | 70 % |
| Lumen setting adjustable | No |
| Max. number of luminaires per miniature circuit breaker B16 | - |
| Max. number of luminaires per miniature circuit breaker C16 | - |
| Power factor | 0.9 |
| Recess length | - mm |
| Number of lamps | 1 |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Flickering value Pst LM | - |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Maximum system power | 60 W |
| Lumen maintenance (35,000 h at 25 °C) | 75 % |
| Unified Glare Rating (UGR) | 26 |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Stroboscope effect value SVM | - |
| Recess height/depth | - mm |
| Height/depth | 77 mm |
| Number of poles | - |
| Nominal current | - - - mA |
| Recess diameter | - mm |
|---|---|
| Colour temperature | 4000 - 4000 K |
| Rated ambient temperature acc. IEC62722-2-1 | 0 - 25 °C |
| Suitable for suspended mounting | No |
| Light source included | Yes |
| With light sensor | No |
| Suitable for emergency lighting | Yes |
| Nominal voltage | 220 - 240 V |
| Control gear included | Yes |
| Lamp power | - W |
| Suitable for recessed mounting | No |
| Suitable for surface mounting | Yes |
| Suitable for ceiling mounting | Yes |
| Constant luminous flux control | No |
| Suitable for light line configuration | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| With air slots | No |
| Luminaire may be covered with thermally insulating material | No |
| Fit for workplace acc. EN 12464-1 | No |
| With movement sensor | No |
| Dimming 0-10 V | No |
| IFTTT support available | No |
| Dimming DALI | No |
| Dimming 1-10 V | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming leading edge | No |
| Dimming trailing edge | No |
| Compatible with Amazon Alexa | No |
| Compatible with Apple HomeKit | No |
| Dimming programmable | No |
| Dimming RF | No |
| Replaceable control gear | Yes |
| Compatible with Google Assistant | No |
| Bluetooth operated | No |
| Dimming DALI-2 | No |
| Dimming DSI | No |
| Dimming Zigbee | No |
| Dimming touch and dim | No |
| Dimming with push-button | No |
