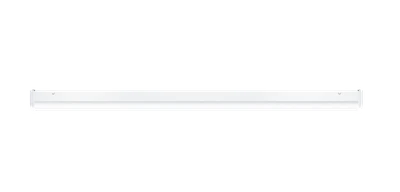

LED Batten Poppy 1500mm IP20 60W 6500lm 4000K
Part Number:
2501145886
MPN:
96631261
- Product Type:
- LED Battens
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
A fast install and versatile IP20 batten with press release buttons for quick opening and installation. Reliable integrated LED technology, ensuring maintenance-free installation and a long lifetime. Homogeneous illumination. Direct replacement for conventional battens in terms of light performance and length. Piano-key terminals, enabling loop-in loop-out. ENEC certified driver. Body: sheet metal, white finish (RAL 9002). Diffuser: polycarbonate, opal. End caps: polycarbonate, white (RAL 9002). Weight: 3,6 kg
- · Rated luminous flux (IEC 62722-2-1): 6500
- · Colour Temperature: 4000
- · Protection Class: I
- · Degree of protection (IP): IP20
- · ENEC certified driver
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Type of grid | None |
|---|---|
| Housing material | Steel |
| Cover material | Plastic opal |
| Impact resistance (IK rating) | IK08 |
| Colour of light | White |
| Protection class according to IEC 61140 | I |
| Control gear | LED driver constant current |
| Colour rendering index (CRI/Ra) | 80-89 |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Filament test according to IEC 60695-2-11 | 850 C - 30 s |
| Light distribution | Symmetric |
| Housing colour | White |
| Lumen setting adjustable | No |
| Colour temperature switchable | No |
| Degree of protection (IP), front side | IP20 |
| Photobiological safety according to EN 62471 | RG0 |
| Light outlet | Direct |
| Light source type | LED non-replaceable |
| Width | 62 mm |
| Conductor cross section | - mm² |
| Voltage type | AC |
| Recess width | - mm |
| Outer diameter | - mm |
| Height/depth | 77 mm |
| Maximum system power | 60 W |
| Length | 1460 mm |
| Recess height/depth | - mm |
| Max. number of luminaires per miniature circuit breaker C16 | 50 |
| Power factor | 0.9 |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | 70 % |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Flickering value Pst LM | - |
| Stroboscope effect value SVM | - |
| Max. number of luminaires per miniature circuit breaker B16 | 50 |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance (35,000 h at 25 °C) | 75 % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Unified Glare Rating (UGR) | 27 |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Recess diameter | - mm |
| Recess length | - mm |
| Number of poles | - |
| Number of lamps | 1 |
|---|---|
| Lamp power | - W |
| Nominal voltage | 220 - 240 V |
| Nominal current | - - - mA |
| Rated ambient temperature acc. IEC62722-2-1 | - °C |
| Colour temperature | 4000 - 4000 K |
| With light sensor | No |
| With movement sensor | No |
| Suitable for suspended mounting | No |
| Suitable for emergency lighting | No |
| Light source included | Yes |
| IFTTT support available | No |
| Control gear included | Yes |
| Suitable for ceiling mounting | Yes |
| Suitable for recessed mounting | No |
| Suitable for surface mounting | Yes |
| Suitable for light line configuration | No |
| Dimming DALI-2 | No |
| Dimming DSI | No |
| Constant luminous flux control | No |
| Luminaire may be covered with thermally insulating material | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| With air slots | No |
| Fit for workplace acc. EN 12464-1 | No |
| Dimming 1-10 V | No |
| Dimming 0-10 V | No |
| Dimming manufacturer's proprietary system | No |
| Dimming potentiometer (integrated) | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming with push-button | No |
| Dimming Zigbee | No |
| Dimming touch and dim | No |
| Dimming RF | No |
| Dimming leading edge | No |
| Dimming programmable | No |
| Dimming trailing edge | No |
| Dimming mains voltage modulation | No |
| Replaceable control gear | Yes |
| Bluetooth operated | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
