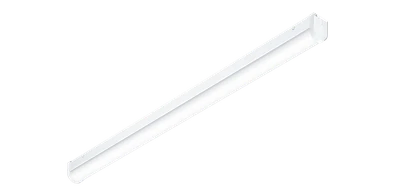

LED Batten Poppy 1500mm IP20 60W 6500lm 4000K E3
Part Number:
2501145888
MPN:
96631271
- Product Type:
- LED Battens
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
A fast install and versatile IP20 batten with press release buttons for quick opening and installation. Reliable integrated LED technology, ensuring maintenance-free installation and a long lifetime. Homogeneous illumination. Direct replacement for conventional battens in terms of light performance and length. Piano-key terminals, enabling loop-in loop-out. ENEC certified driver. 3 hour emergency lighting. Body: sheet metal, white finish (RAL 9002). Diffuser: polycarbonate, opal. End caps: polycarbonate, white (RAL 9002). Weight: 4,3 kg
- · Rated luminous flux (IEC 62722-2-1): 6500
- · Colour Temperature: 4000
- · Protection Class: I
- · Degree of protection (IP): IP20
- · ENEC certified driver
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Colour rendering index (CRI/Ra) | 80-89 |
|---|---|
| Housing material | Steel |
| Type of grid | None |
| Cover material | Plastic opal |
| Impact resistance (IK rating) | IK08 |
| Housing colour | White |
| Protection class according to IEC 61140 | I |
| Control gear | LED driver constant current |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Filament test according to IEC 60695-2-11 | 850 C - 30 s |
| Light distribution | Symmetric |
| Colour temperature switchable | No |
| Lumen setting adjustable | No |
| Degree of protection (IP), front side | IP20 |
| Voltage type | AC |
| Light outlet | Direct |
| Light source type | LED non-replaceable |
| Outer diameter | - mm |
| Conductor cross section | - mm² |
| Recess width | - mm |
| Height/depth | 77 mm |
| Length | 1460 mm |
| Width | 62 mm |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Power factor | 0.9 |
| Max. number of luminaires per miniature circuit breaker C16 | - |
| Recess height/depth | - mm |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | 70 % |
| Max. number of luminaires per miniature circuit breaker B16 | - |
| Lumen maintenance (35,000 h at 25 °C) | 75 % |
| Maximum system power | 60 W |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Flickering value Pst LM | - |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Unified Glare Rating (UGR) | 27 |
| Stroboscope effect value SVM | - |
| Recess diameter | - mm |
| Number of poles | - |
| Recess length | - mm |
| Number of lamps | 1 |
| Lamp power | - W |
|---|---|
| Nominal voltage | 220 - 240 V |
| Nominal current | - - - mA |
| Colour temperature | 4000 - 4000 K |
| Light source included | Yes |
| Rated ambient temperature acc. IEC62722-2-1 | 0 - 25 °C |
| With movement sensor | No |
| Suitable for suspended mounting | No |
| Suitable for emergency lighting | Yes |
| With light sensor | No |
| Suitable for recessed mounting | No |
| Suitable for ceiling mounting | Yes |
| With air slots | No |
| Constant luminous flux control | No |
| Luminaire may be covered with thermally insulating material | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Control gear included | Yes |
| Suitable for surface mounting | Yes |
| Suitable for light line configuration | No |
| IFTTT support available | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Fit for workplace acc. EN 12464-1 | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming trailing edge | No |
| Dimming mains voltage modulation | No |
| Replaceable control gear | Yes |
| Dimming DSI | No |
| Dimming DALI-2 | No |
| Compatible with Amazon Alexa | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Bluetooth operated | No |
| Dimming with push-button | No |
| Dimming Zigbee | No |
| Dimming touch and dim | No |
| Dimming RF | No |
| Dimming leading edge | No |
| Dimming programmable | No |
