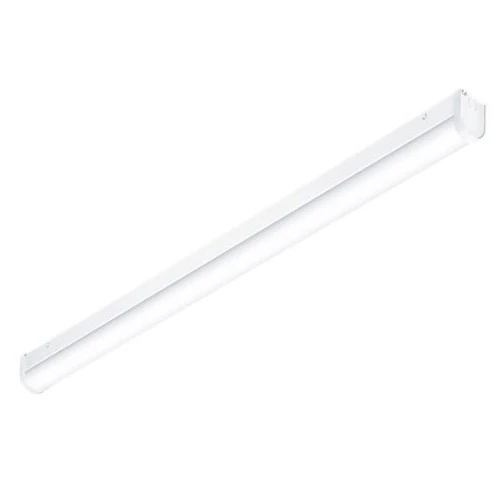

LED Batten Poppy 1500mm IP20 40W 4500lm 4000K
Part Number:
2501145882
MPN:
96631260
- Product Type:
- LED Battens
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
A fast install and versatile IP20 batten with press release buttons for quick opening and installation. Reliable integrated LED technology, ensuring maintenance-free installation and a long lifetime. Homogeneous illumination. Direct replacement for conventional battens in terms of light performance and length. Piano-key terminals, enabling loop-in loop-out. ENEC certified driver. Body: sheet metal, white finish (RAL 9002). Diffuser: polycarbonate, opal. End caps: polycarbonate, white (RAL 9002). Weight: 3,6 kg
- · Rated luminous flux (IEC 62722-2-1): 4504
- · Colour Temperature: 4000
- · Protection Class: I
- · Degree of protection (IP): IP20
- · ENEC certified driver
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Colour rendering index (CRI/Ra) | 80-89 |
|---|---|
| Type of grid | None |
| Housing material | Steel |
| Cover material | Plastic opal |
| Colour of light | White |
| Impact resistance (IK rating) | IK08 |
| Protection class according to IEC 61140 | I |
| Housing colour | White |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Control gear | LED driver constant current |
| Photobiological safety according to EN 62471 | RG0 |
| Filament test according to IEC 60695-2-11 | 850 C - 30 s |
| Light distribution | Symmetric |
| Lumen setting adjustable | No |
| Colour temperature switchable | No |
| Voltage type | AC |
| Light outlet | Direct |
| Light source type | LED non-replaceable |
| Width | 62 mm |
| Outer diameter | - mm |
| Length | 1460 mm |
| Conductor cross section | - mm² |
| Recess width | - mm |
| Height/depth | 77 mm |
| Power factor | 0.9 |
| Maximum system power | 40 W |
| Recess height/depth | - mm |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | 70 % |
| Max. number of luminaires per miniature circuit breaker C16 | 70 |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Flickering value Pst LM | - |
| Max. number of luminaires per miniature circuit breaker B16 | 60 |
| Stroboscope effect value SVM | - |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance (35,000 h at 25 °C) | 75 % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Unified Glare Rating (UGR) | 25 |
| Number of poles | - |
| Recess diameter | - mm |
| Recess length | - mm |
| Number of lamps | 1 |
| Lamp power | - W |
|---|---|
| Nominal voltage | 220 - 240 V |
| Rated ambient temperature acc. IEC62722-2-1 | - °C |
| Nominal current | - - - mA |
| Colour temperature | 4000 - 4000 K |
| Suitable for suspended mounting | No |
| With light sensor | No |
| Suitable for emergency lighting | No |
| With movement sensor | No |
| Light source included | Yes |
| Suitable for ceiling mounting | Yes |
| Constant luminous flux control | No |
| Dimming 0-10 V | No |
| Dimming DALI | No |
| Dimming 1-10 V | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming potentiometer (integrated) | No |
| With air slots | No |
| Fit for workplace acc. EN 12464-1 | No |
| Dimming DMX | No |
| IFTTT support available | No |
| Luminaire may be covered with thermally insulating material | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Suitable for light line configuration | No |
| Suitable for surface mounting | Yes |
| Control gear included | Yes |
| Suitable for recessed mounting | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Dimming with push-button | No |
| Dimming Zigbee | No |
| Dimming touch and dim | No |
| Dimming leading edge | No |
| Dimming trailing edge | No |
| Dimming programmable | No |
| Dimming RF | No |
| Compatible with Amazon Alexa | No |
| Bluetooth operated | No |
| Replaceable control gear | Yes |
| Dimming DSI | No |
| Dimming DALI-2 | No |
