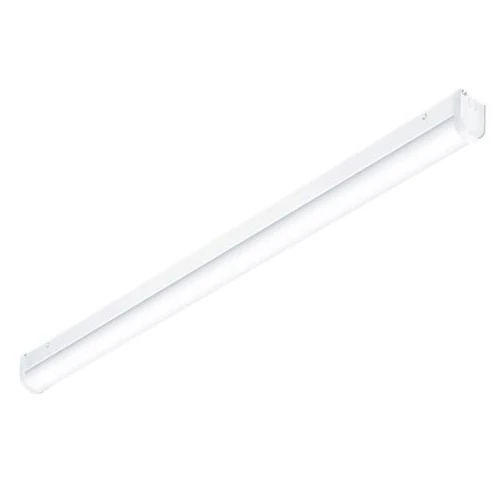

LED Batten Poppy 1500mm IP20 40W 4500lm 4000K E3
Part Number:
2501145883
MPN:
96631270
- Product Type:
- LED Battens
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
A fast install and versatile IP20 batten with press release buttons for quick opening and installation. Reliable integrated LED technology, ensuring maintenance-free installation and a long lifetime. Homogeneous illumination. Direct replacement for conventional battens in terms of light performance and length. Piano-key terminals, enabling loop-in loop-out. ENEC certified driver. 3 hour emergency lighting. Body: sheet metal, white finish (RAL 9002). Diffuser: polycarbonate, opal. End caps: polycarbonate, white (RAL 9002). Weight: 4,3 kg
- · Rated luminous flux (IEC 62722-2-1): 4504
- · Colour Temperature: 4000
- · Protection Class: I
- · Degree of protection (IP): IP20
- · ENEC certified driver
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Type of grid | None |
|---|---|
| Colour rendering index (CRI/Ra) | 80-89 |
| Housing material | Steel |
| Cover material | Plastic opal |
| Impact resistance (IK rating) | IK08 |
| Housing colour | White |
| Control gear | LED driver constant current |
| Protection class according to IEC 61140 | I |
| Filament test according to IEC 60695-2-11 | 850 C - 30 s |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Colour temperature switchable | No |
| Light distribution | Symmetric |
| Voltage type | AC |
| Lumen setting adjustable | No |
| Light outlet | Direct |
| Light source type | LED non-replaceable |
| Outer diameter | - mm |
| Width | 62 mm |
| Length | 1460 mm |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | 70 % |
| Max. number of luminaires per miniature circuit breaker B16 | - |
| Max. number of luminaires per miniature circuit breaker C16 | - |
| Stroboscope effect value SVM | - |
| Unified Glare Rating (UGR) | 25 |
| Flickering value Pst LM | - |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Maximum system power | 40 W |
| Lumen maintenance (35,000 h at 25 °C) | 75 % |
| Power factor | 0.9 |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Recess height/depth | - mm |
| Recess length | - mm |
| Number of poles | - |
| Number of lamps | 1 |
| Conductor cross section | - mm² |
| Recess width | - mm |
| Height/depth | 77 mm |
| Recess diameter | - mm |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Lamp power | - W |
| Nominal current | - - - mA |
|---|---|
| Nominal voltage | 220 - 240 V |
| Colour temperature | 4000 - 4000 K |
| Rated ambient temperature acc. IEC62722-2-1 | 0 - 25 °C |
| Suitable for suspended mounting | No |
| Replaceable control gear | Yes |
| Dimming DSI | No |
| Dimming DALI-2 | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Bluetooth operated | No |
| Dimming with push-button | No |
| Dimming Zigbee | No |
| Light source included | Yes |
| With light sensor | No |
| Suitable for emergency lighting | Yes |
| With movement sensor | No |
| Control gear included | Yes |
| Suitable for recessed mounting | No |
| Suitable for ceiling mounting | Yes |
| Constant luminous flux control | No |
| Dimming 0-10 V | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Suitable for light line configuration | No |
| Suitable for surface mounting | Yes |
| IFTTT support available | No |
| Compatible with Apple HomeKit | No |
| Dimming touch and dim | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming DALI | No |
| Dimming 1-10 V | No |
| Dimming potentiometer (integrated) | No |
| With air slots | No |
| Luminaire may be covered with thermally insulating material | No |
| Fit for workplace acc. EN 12464-1 | No |
| Dimming DMX | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming leading edge | No |
| Dimming trailing edge | No |
