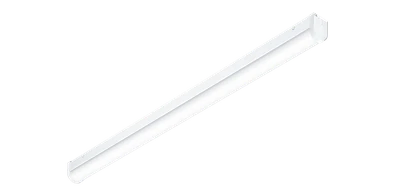

LED Batten Poppy 1200mm IP20 48W 5000lm 4000K E3
Part Number:
2501145885
MPN:
96631269
- Product Type:
- LED Battens
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
A fast install and versatile IP20 batten with press release buttons for quick opening and installation. Reliable integrated LED technology, ensuring maintenance-free installation and a long lifetime. Homogeneous illumination. Direct replacement for conventional battens in terms of light performance and length. Piano-key terminals, enabling loop-in loop-out. ENEC certified driver. 3 hour emergency lighting. Body: sheet metal, white finish (RAL 9002). Diffuser: polycarbonate, opal. End caps: polycarbonate, white (RAL 9002). Weight: 2,5 kg
- · Rated luminous flux (IEC 62722-2-1): 5000
- · Colour Temperature: 4000
- · Protection Class: I
- · Degree of protection (IP): IP20
- · ENEC certified driver
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Type of grid | None |
|---|---|
| Colour rendering index (CRI/Ra) | 80-89 |
| Housing material | Steel |
| Cover material | Plastic opal |
| Impact resistance (IK rating) | IK08 |
| Housing colour | White |
| Control gear | LED driver constant current |
| Protection class according to IEC 61140 | I |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Filament test according to IEC 60695-2-11 | 850 C - 30 s |
| Light distribution | Symmetric |
| Lumen setting adjustable | No |
| Colour temperature switchable | No |
| Degree of protection (IP), front side | IP20 |
| Light outlet | Direct |
| Voltage type | AC |
| Light source type | LED non-replaceable |
| Width | 62 mm |
| Outer diameter | - mm |
| Length | 1160 mm |
| Conductor cross section | - mm² |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | 70 % |
| Max. number of luminaires per miniature circuit breaker C16 | - |
| Power factor | 0.9 |
| Recess height/depth | - mm |
| Number of lamps | 1 |
| Recess length | - mm |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Max. number of luminaires per miniature circuit breaker B16 | - |
| Maximum system power | 48 W |
| Lumen maintenance (35,000 h at 25 °C) | 75 % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Flickering value Pst LM | - |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Stroboscope effect value SVM | - |
| Unified Glare Rating (UGR) | 27 |
| Height/depth | 77 mm |
| Recess width | - mm |
| Number of poles | - |
| Recess diameter | - mm |
| Lamp power | - W |
|---|---|
| Colour temperature | 4000 - 4000 K |
| Nominal current | - - - mA |
| Nominal voltage | 220 - 240 V |
| Rated ambient temperature acc. IEC62722-2-1 | 0 - 25 °C |
| Suitable for suspended mounting | No |
| With movement sensor | No |
| Light source included | Yes |
| Suitable for ceiling mounting | Yes |
| With light sensor | No |
| Suitable for emergency lighting | Yes |
| IFTTT support available | No |
| Control gear included | Yes |
| Suitable for surface mounting | Yes |
| Suitable for recessed mounting | No |
| Constant luminous flux control | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Suitable for light line configuration | No |
| Dimming 1-10 V | No |
| Dimming 0-10 V | No |
| Luminaire may be covered with thermally insulating material | No |
| With air slots | No |
| Dimming potentiometer (integrated) | No |
| Dimming DALI | No |
| Dimming manufacturer's proprietary system | No |
| Dimming DMX | No |
| Dimming touch and dim | No |
| Dimming Zigbee | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming leading edge | No |
| Fit for workplace acc. EN 12464-1 | No |
| Dimming mains voltage modulation | No |
| Dimming trailing edge | No |
| Replaceable control gear | Yes |
| Dimming DSI | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Dimming DALI-2 | No |
| Bluetooth operated | No |
| Dimming with push-button | No |
