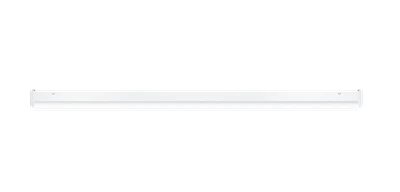

LED Batten Poppy 1200mm IP20 24W 2500lm 4000K E3
Part Number:
2501145881
MPN:
96631268
- Product Type:
- LED Battens
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
A fast install and versatile IP20 batten with press release buttons for quick opening and installation. Reliable integrated LED technology, ensuring maintenance-free installation and a long lifetime. Homogeneous illumination. Direct replacement for conventional battens in terms of light performance and length. Piano-key terminals, enabling loop-in loop-out. ENEC certified driver. 3 hour emergency lighting. Body: sheet metal, white finish (RAL 9002). Diffuser: polycarbonate, opal. End caps: polycarbonate, white (RAL 9002). Weight: 2,5 kg
- · Rated luminous flux (IEC 62722-2-1): 2500
- · Colour Temperature: 4000
- · Protection Class: I
- · Degree of protection (IP): IP20
- · ENEC certified driver
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Type of grid | None |
|---|---|
| Housing material | Steel |
| Colour rendering index (CRI/Ra) | 80-89 |
| Housing colour | White |
| Cover material | Plastic opal |
| Impact resistance (IK rating) | IK08 |
| Protection class according to IEC 61140 | I |
| Control gear | LED driver constant current |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Light distribution | Symmetric |
| Filament test according to IEC 60695-2-11 | 850 C - 30 s |
| Lumen setting adjustable | No |
| Colour temperature switchable | No |
| Degree of protection (IP), front side | IP20 |
| Voltage type | AC |
| Light outlet | Direct |
| Light source type | LED non-replaceable |
| Width | 62 mm |
| Length | 1160 mm |
| Conductor cross section | - mm² |
| Recess width | - mm |
| Outer diameter | - mm |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Power factor | 0.9 |
| Recess height/depth | - mm |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Max. number of luminaires per miniature circuit breaker B16 | - |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance (35,000 h at 25 °C) | 75 % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | 70 % |
| Max. number of luminaires per miniature circuit breaker C16 | - |
| Maximum system power | 24 W |
| Flickering value Pst LM | - |
| Stroboscope effect value SVM | - |
| Unified Glare Rating (UGR) | 24 |
| Number of poles | - |
| Height/depth | 77 mm |
| Recess length | - mm |
| Number of lamps | 1 |
| Recess diameter | - mm |
| Lamp power | - W |
|---|---|
| Colour temperature | 4000 - 4000 K |
| Nominal current | - - - mA |
| Nominal voltage | 220 - 240 V |
| Rated ambient temperature acc. IEC62722-2-1 | 0 - 25 °C |
| With movement sensor | No |
| Suitable for suspended mounting | No |
| With light sensor | No |
| Light source included | Yes |
| Suitable for emergency lighting | Yes |
| Constant luminous flux control | No |
| With air slots | No |
| Luminaire may be covered with thermally insulating material | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Dimming 1-10 V | No |
| Dimming 0-10 V | No |
| Dimming potentiometer (integrated) | No |
| Fit for workplace acc. EN 12464-1 | No |
| Dimming manufacturer's proprietary system | No |
| Dimming DALI | No |
| Dimming DMX | No |
| IFTTT support available | No |
| Control gear included | Yes |
| Suitable for surface mounting | Yes |
| Suitable for light line configuration | No |
| Suitable for recessed mounting | No |
| Suitable for ceiling mounting | Yes |
| Dimming DSI | No |
| Replaceable control gear | Yes |
| Dimming DALI-2 | No |
| Bluetooth operated | No |
| Dimming with push-button | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Dimming touch and dim | No |
| Dimming Zigbee | No |
| Dimming RF | No |
| Dimming leading edge | No |
| Dimming programmable | No |
| Dimming trailing edge | No |
| Dimming mains voltage modulation | No |
