Batten Single 4000K Opal Diffuser Standard
Part Number:
2501309351
MPN:
BT6SS40
- Product Type:
- LED Battens
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details

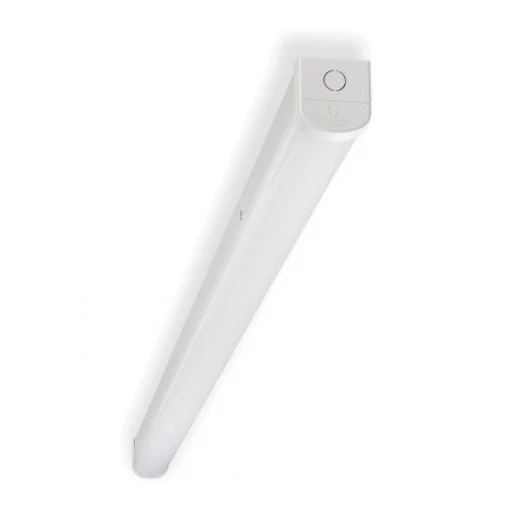

Collingwood Lighting BT6SS40 Batten Single 4000K Opal Diffuser Standard 42W 5460lm 1828x70x76mm Matt White Steel
- · Multiple fixing points and several wiring options
- · Highly efficient up to 124lm/W
- · Microwave built-in, On-Off and dusk-dawn functions, providing energy savings
- · Ideal for sheds, garages and warehouses
- · Built in self-test emergency available. Lumen output in EM mode = 250lm
- · Ideal for sheds, garages and warehouses
Technical Specifications
Technical Specifications
Batten luminaire | |
| Degree of protection (IP rating) | IP20 |
|---|---|
| Width | 76 mm |
| Height/depth | 70 mm |
| Number of lamps | 1 |
| Diameter | - mm |
| Number of poles | - |
| Rated life time L70/B50 at 25 °C | 54000 h |
| Maximum system power | 42 W |
| Power factor | 95 |
| Length | 1828 mm |
| Conductor cross section | - mm² |
| Nominal voltage | 220 - 240 V |
| Lamp power | - W |
| Colour temperature | 4000 - 4000 K |
| Light source included | Yes |
| Suitable for emergency lighting | No |
| With movement sensor | No |
| With switch | No |
| Electrical connection with connector system | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Control gear included | Yes |
| Dimming trailing edge | No |
| Dimming LineSwitch | No |
|---|---|
| Luminaire may be covered with thermally insulating material | No |
| Dimming leading edge | No |
| IFTTT support available | No |
| Replaceable control gear | No |
| Dimming sine wave reduction | No |
| Dimming potentiometer (integrated) | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Dimming DMX | No |
| Dimming mains voltage modulation | No |
| Dimming programmable | No |
| Dimming DALI | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming Zigbee | No |
| Dimming manufacturer's proprietary system | No |
| Dimming RF | No |
| Dimming touch and dim | No |
| Dimming DSI | No |
| Dimming with push-button | No |
| Compatible with Apple HomeKit | No |
