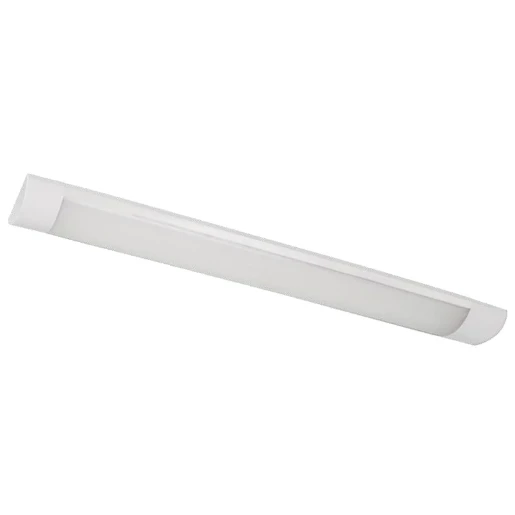

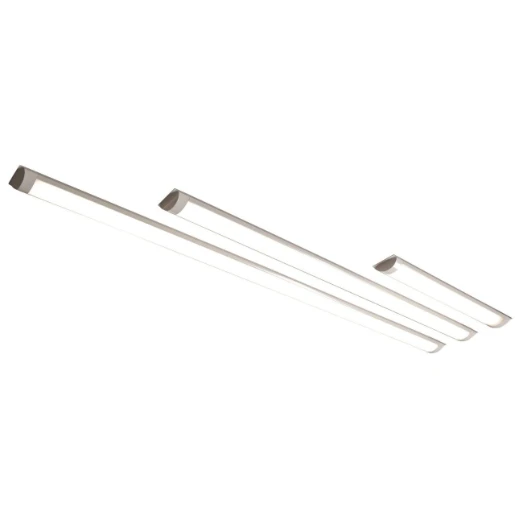

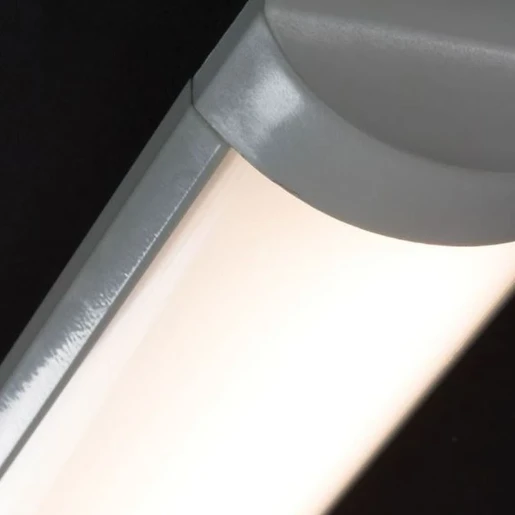

Batten LED Slimline IP20 18W 0.6m White 4000K 160°

Part Number:

2500932152

MPN:

RTC184006-01

To view pricing, availability, and special offering, click the button below and log in.

Product Details

TOUCAN 18W LED Batten, IP20, 0.6m, White, 4000K

· Suitable for use in flat and apartment blocks, public buildings, care homes, communal areas, reception areas
· LED replacement for 2x18W T8 fluorescent surface fittings
· Low profile aluminium housing with PBT end caps and polycarbonate diffuser
· High impact rating of IK08
· Complete with stainless steel mounting brackets
· Prewired with 1m of flex
· High efficacy of 97lm/W
· Wide operating ambient temperature range of -20C to +40C
· Suitable for switching by PIR, Microwave or Photocell
· Provides more efficient thermal management for long life

Batten luminaire
Degree of protection (IP rating)	IP20
Material	Aluminium
Length	615 mm
Width	75 mm
Conductor cross section	- mm²
Number of lamps	-
Height/depth	25 mm
Number of poles	-
Rated life time L70/B50 at 25 °C	30000 h
Luminaire efficacy	97 lm/W
Maximum system power	18.7 W
Power factor	0.95
Lamp power	- - - W
Nominal voltage	220 - 240 V
Nominal current	85 - 85 mA
Colour temperature	4000 - 4000 K
Dimming sine wave reduction	No
Dimming potentiometer (integrated)	No
Dimming LineSwitch	No
Luminaire may be covered with thermally insulating material	No
Dimming programmable	No


Dimming touch and dim	No
Dimming mains voltage modulation	No
Bluetooth operated	No
Dimming DSI	No
Dimming with push-button	No
Light source included	Yes
Suitable for emergency lighting	No
With light sensor	No
With movement sensor	No
Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24	No
Dimming Zigbee	No
Dimming trailing edge	No
Control gear included	Yes
Dimming leading edge	No
Dimming RF	No
Dimming DALI	No
Dimming DMX	No
Dimming manufacturer's proprietary system	No
Dimming 0-10 V	No
Dimming 1-10 V	No
