Batten LED Single 37W 4000K 4500lm IP20 5Ft
Part Number:
2501091676
MPN:
JC71743
- Product Type:
- LED Battens
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Manual
Manual
Technical Data Sheet
Product Details
Product Details
JCC Skypack LED Batten with rear and end conduit entry points. It features intelligent press release buttons for simple installation. Manufactured according to the BS EN 60598:2015 standards.
- · Press fit terminals, loop in loop out
- · Rear and end conduit entry points
- · Ultra efficient, up to 120 lumens per circuit Watt
- · Intelligent press release buttons for simple installation
- · Suspended LED tray for easy installation
- · Microwave dimmable and on/off options
Technical Specifications
Technical Specifications
Batten luminaire | |

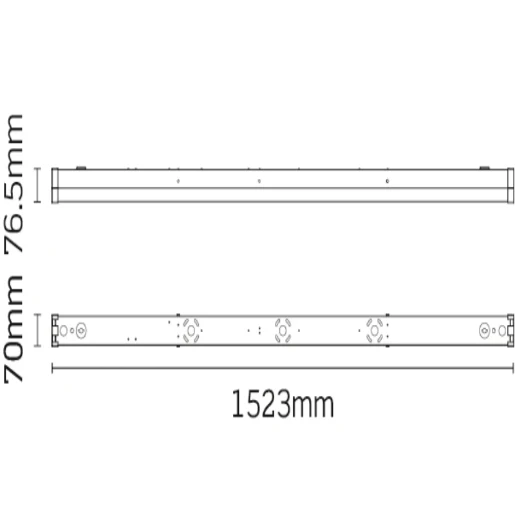

| Length | 1523 mm |
|---|---|
| Width | 70 mm |
| Height/depth | 76.5 mm |
| Number of poles | 3 |
| Power factor | 0.9 |
| Number of lamps | 1 |
| Maximum system power | 37 W |
| Nominal voltage | 220 - 240 V |
| Colour temperature | 4000 - 4000 K |
| Rated luminous flux according to IEC 62722-2- 1 | 4440 - 4440 lm |
| Light source included | Yes |
| With movement sensor | No |
| Suitable for emergency lighting | No |
| Electrical connection with connector system | No |
| Luminaire may be covered with thermally insulating material | No |
| Dimming trailing edge | No |
| Control gear included | Yes |
| Dimming sine wave reduction | No |
|---|---|
| Dimming LineSwitch | No |
| Dimming with push-button | No |
| Dimming Zigbee | No |
| Dimming touch and dim | No |
| Dimming RF | No |
| Dimming DSI | No |
| Dimming mains voltage modulation | No |
| Dimming leading edge | No |
| Dimming DMX | No |
| Dimming DALI | No |
| Dimming 0-10 V | No |
| Dimming programmable | No |
| Dimming 1-10 V | No |
| Dimming manufacturer's proprietary system | No |
| Replaceable control gear | Yes |
