Batten LED Single 23W 4000K 2800lm IP20 4Ft
Part Number:
2501091672
MPN:
JC71741
- Product Type:
- LED Battens
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Manual
Manual
Technical Data Sheet
Product Details
Product Details
JCC Skypack LED Batten with rear and end conduit entry points. It features intelligent press release buttons for simple installation. Manufactured according to the BS EN 60598:2015 standards.
- · Press fit terminals, loop in loop out
- · Rear and end conduit entry points
- · Ultra efficient, up to 120 lumens per circuit Watt
- · Intelligent press release buttons for simple installation
- · Suspended LED tray for easy installation
- · Microwave dimmable and on/off options
Technical Specifications
Technical Specifications
Batten luminaire | |
| Power factor | 0.9 |
|---|---|

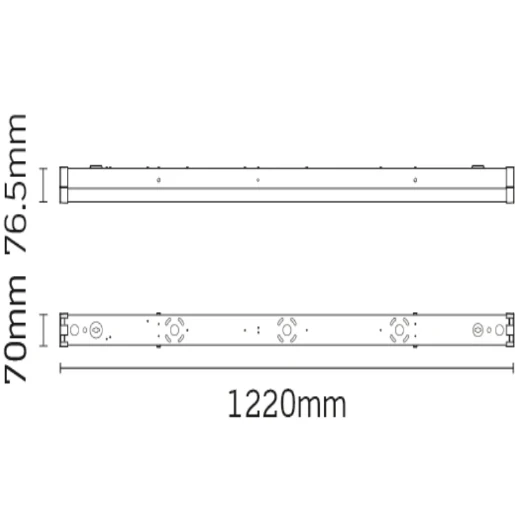

| Width | 70 mm |
| Number of lamps | 1 |
| Maximum system power | 23 W |
| Length | 1220 mm |
| Number of poles | 3 |
| Height/depth | 76.5 mm |
| Colour temperature | 4000 - 4000 K |
| Nominal voltage | 220 - 240 V |
| Rated luminous flux according to IEC 62722-2- 1 | 2760 - 2760 lm |
| Light source included | Yes |
| With switch | No |
| With movement sensor | No |
| Suitable for emergency lighting | No |
| Control gear included | Yes |
| Dimming trailing edge | No |
| Dimming LineSwitch | No |
| Electrical connection with connector system | No |
|---|---|
| Luminaire may be covered with thermally insulating material | No |
| Dimming leading edge | No |
| Dimming DMX | No |
| Dimming mains voltage modulation | No |
| Dimming programmable | No |
| Dimming DALI | No |
| Replaceable control gear | Yes |
| Dimming sine wave reduction | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming Zigbee | No |
| Dimming manufacturer's proprietary system | No |
| Dimming RF | No |
| Dimming touch and dim | No |
| Dimming DSI | No |
| Dimming with push-button | No |
