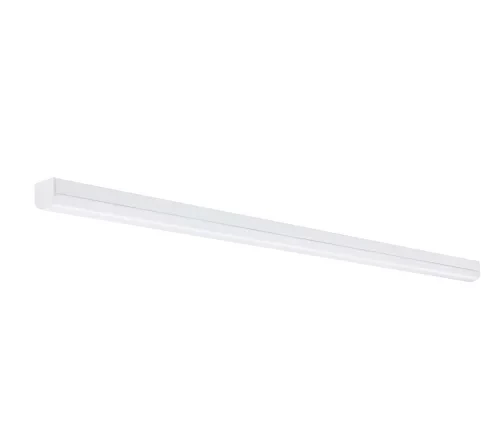

BN065C 4000K 8000Lm LED80S/840 PSU L1800 UKI Ledinaire Batten
Part Number:
2501305781
MPN:
911401826381
- Product Type:
- LED Battens
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
The Ledinaire Batten range provides maximum performance and versatility at great value. As an off-the-shelf LED luminaire solution for all your everyday needs, it can be deployed in a wide variety of locations.
- · Luminous Flux 8,000 lumen
- · Correlated Color Temperature (Nom) 4000 K
- · Luminous Efficacy (rated) (Nom) 110 lm/W
- · Color rendering index (CRI) 80
Technical Specifications
Technical Specifications
Batten luminaire | |
| Length | 1750 mm |
|---|---|
| Width | 65 mm |
| Conductor cross section | 0.75 mm² |
| Number of poles | 3 |
| Diameter | - mm |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Rated life time L70/B50 at 25 °C | 30000 h |
| Maximum system power | 80.3 W |
| Number of lamps | - |
| Power factor | 0.9 |
| Height/depth | 65 mm |
| Lamp power | - - - W |
| Nominal voltage | 220 - 240 V |
| Colour temperature | 4000 - 4000 K |
| With movement sensor | No |
| Suitable for emergency lighting | No |
| Light source included | Yes |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| With switch | No |
| Dimming 1-10 V | No |
| Electrical connection with connector system | No |
| Luminaire may be covered with thermally insulating material | No |
| Dimming potentiometer (integrated) | No |
|---|---|
| Dimming manufacturer's proprietary system | No |
| Dimming leading edge | No |
| Dimming trailing edge | No |
| Dimming DMX | No |
| Dimming DALI | No |
| Dimming Zigbee | No |
| Replaceable control gear | No |
| Dimming LineSwitch | No |
| Dimming programmable | No |
| Compatible with Apple HomeKit | No |
| Dimming mains voltage modulation | No |
| Constant luminous flux control | No |
| Control gear included | Yes |
| Dimming 0-10 V | No |
| IFTTT support available | No |
| Dimming RF | No |
| Dimming with push-button | No |
| Compatible with Amazon Alexa | No |
| Dimming sine wave reduction | No |
| Dimming DSI | No |
| Dimming touch and dim | No |
| Compatible with Google Assistant | No |
