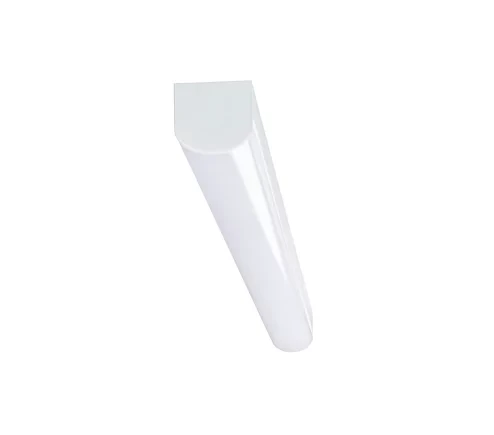

BN065C 4000K 6000Lm LED60S/840 PSU L1500 UKI Ledinaire Batten
Part Number:
2501305779
MPN:
911401826181
- Product Type:
- LED Battens
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
The Ledinaire Batten range provides maximum performance and versatility at great value. As an off-the-shelf LED luminaire solution for all your everyday needs, it can be deployed in a wide variety of locations.
- · Luminous Flux 6,000 lumen
- · Correlated Color Temperature (Nom) 4000 K
- · Luminous Efficacy (rated) (Nom) 109 lm/W
- · Color rendering index (CRI) 80
Technical Specifications
Technical Specifications
Batten luminaire | |
| Number of lamps | - |
|---|---|
| Conductor cross section | 0.75 mm² |
| Width | 65 mm |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Length | 1450 mm |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Maximum system power | 55 W |
| Diameter | - mm |
| Number of poles | 3 |
| Power factor | 0.9 |
| Rated life time L70/B50 at 25 °C | 30000 h |
| Height/depth | 65 mm |
| Lamp power | - W |
| Nominal voltage | 220 - 240 V |
| Colour temperature | 4000 - 4000 K |
| Light source included | Yes |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Suitable for emergency lighting | No |
| With movement sensor | No |
| With switch | No |
| Electrical connection with connector system | No |
| Dimming programmable | No |
| Dimming mains voltage modulation | No |
| Dimming 0-10 V | No |
|---|---|
| Dimming LineSwitch | No |
| Dimming potentiometer (integrated) | No |
| Control gear included | Yes |
| Dimming DALI | No |
| Dimming RF | No |
| Dimming trailing edge | No |
| Dimming DMX | No |
| Dimming manufacturer's proprietary system | No |
| IFTTT support available | No |
| Dimming 1-10 V | No |
| Dimming DSI | No |
| Dimming with push-button | No |
| Dimming Zigbee | No |
| Compatible with Amazon Alexa | No |
| Dimming sine wave reduction | No |
| Luminaire may be covered with thermally insulating material | No |
| Dimming leading edge | No |
| Constant luminous flux control | No |
| Dimming touch and dim | No |
| Compatible with Google Assistant | No |
| Replaceable control gear | No |
| Compatible with Apple HomeKit | No |
