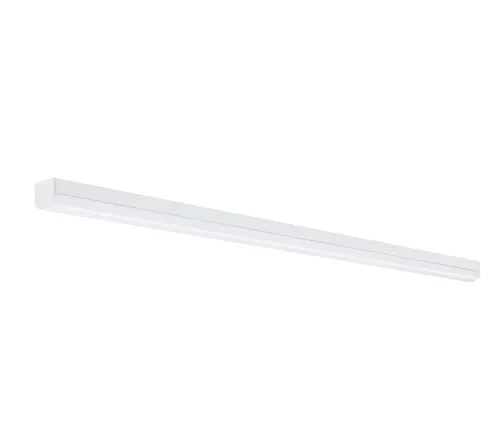

BN065C 4000K 4300Lm LED43S/840 PSU L1800 UKI Ledinaire Batten
Part Number:
2501305780
MPN:
911401826281
- Product Type:
- LED Battens
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
The Ledinaire Batten range provides maximum performance and versatility at great value. As an off-the-shelf LED luminaire solution for all your everyday needs, it can be deployed in a wide variety of locations.
- · Luminous Flux 4,300 lumen
- · Correlated Color Temperature (Nom) 4000 K
- · Luminous Efficacy (rated) (Nom) 110 lm/W
- · Color rendering index (CRI) 80
Technical Specifications
Technical Specifications
Batten luminaire | |
| Width | 65 mm |
|---|---|
| Diameter | - mm |
| Conductor cross section | 0.75 mm² |
| Height/depth | 65 mm |
| Number of poles | 3 |
| Rated life time L70/B50 at 25 °C | 30000 h |
| Number of lamps | - |
| Power factor | 0.9 |
| Maximum system power | 39 W |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Lamp power | - - - W |
| Length | 1750 mm |
| Nominal voltage | 220 - 240 V |
| Colour temperature | 4000 - 4000 K |
| Suitable for emergency lighting | No |
| Light source included | Yes |
| With movement sensor | No |
| Electrical connection with connector system | No |
| With switch | No |
| Dimming leading edge | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Control gear included | Yes |
|---|---|
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Dimming potentiometer (integrated) | No |
| Dimming 1-10 V | No |
| Dimming LineSwitch | No |
| Luminaire may be covered with thermally insulating material | No |
| Dimming trailing edge | No |
| Dimming Zigbee | No |
| Dimming DALI | No |
| Compatible with Apple HomeKit | No |
| Constant luminous flux control | No |
| Dimming 0-10 V | No |
| Dimming DMX | No |
| Dimming programmable | No |
| IFTTT support available | No |
| Replaceable control gear | No |
| Dimming RF | No |
| Dimming with push-button | No |
| Dimming touch and dim | No |
| Dimming sine wave reduction | No |
| Compatible with Amazon Alexa | No |
| Dimming DSI | No |
| Compatible with Google Assistant | No |
