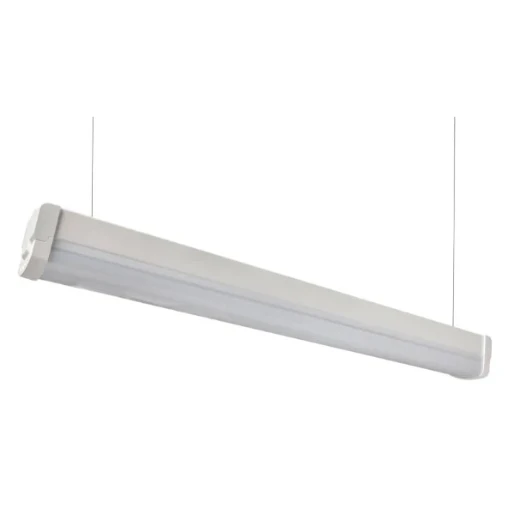

24W/52W 1530mm White IP20 3/4/6500K Speedbeam Plus LED Batten
Part Number:
2501564684
MPN:
RSBX015-01
- Product Type:
- LED Battens
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Details
Product Details
The Robus 24w/52w 1530mm white 3/4/6500k speedbeam plus led batten plus LED batten is a high-quality, energy-efficient LED batten that is perfect for a wide range of applications. It is ideal for use in offices, workshops, schools, hospitals, and other commercial and industrial settings.The Speedbeam Plus LED Batten is made from durable polycarbonate and features a two-part construction for easy wiring and installation. It also has a high impact protection rating of IK06, making it suitable for even the most demanding environments.The speedbeam plus LED batten produces a bright, white light that is ideal for task lighting. It has a color temperature of 3/4/6500K, which allows you to choose the right light for your needs. 3000K is a warm white light, 4000K is a neutral white light, and 6500K is a cool white light.
- · Easy to open screw-less end caps providing quick and simple installation
- · Two-part construction making wiring and installation much easier and faster
- · All sizes equipped with quick connectors allowing plug-in emergency pack (RLEMPKDT-PSU) and plug-in microwave sensor (RLMW) to be fitted in seconds
- · Light colour temperature selectable between 3000K, 4000K and 6500K
- · Unique design of each size allowing selection between 2 different lumen outputs to suit installation area requirements
- · 4-way push terminals
- · Base suitable for 20mm conduit entry
- · Polycarbonate housing and the diffuser providing high impact protection rating of IK07
Technical Specifications
Technical Specifications
Batten luminaire | |
| Width | 66 mm |
|---|---|
| Height/depth | 66 mm |
| Degree of protection (IP rating) | IP20 |
| Maximum system power | 51.2 W |
| Luminaire efficacy | 158 lm/W |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Length | 1530 mm |
| Nominal voltage | 220 - 240 V |
| Nominal current | 110 - 220 mA |
| Light source included | Yes |
| Colour temperature | 3000 - 6500 K |
| Suitable for emergency lighting | Yes |
| With movement sensor | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Control gear included | Yes |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
|---|---|
| Dimming Zigbee | No |
| Dimming LineSwitch | No |
| With light sensor | No |
| Dimming programmable | No |
| Dimming touch and dim | No |
| Dimming RF | No |
| Dimming trailing edge | No |
| Dimming leading edge | No |
| Dimming manufacturer's proprietary system | No |
| Dimming with push-button | No |
| Dimming sine wave reduction | No |
| Dimming potentiometer (integrated) | No |
| Dimming mains voltage modulation | No |
| Replaceable control gear | Yes |
| Dimming DSI | No |
