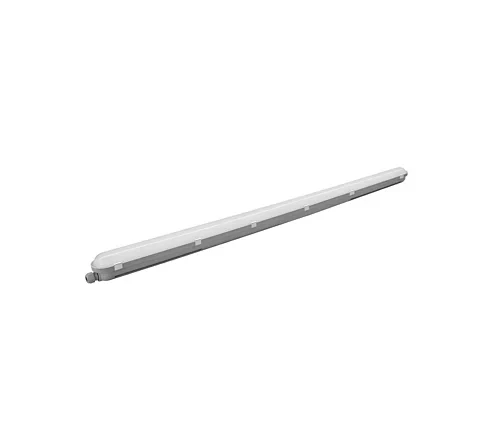

Ledinaire Waterproof 6ft Twin 65W 4000K
Part Number:
2501305775
MPN:
911401825781
- Product Type:
- Batten Accessories
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
The Ledinaire Waterproof range provides maximum performance and durability at great value. As an off-the-shelf LED luminaire solution for all your everyday needs, it can be deployed in a wide variety of locations.
- · Luminous Flux 8,400 lumen
- · Correlated Color Temperature (Nom) 4000 K
- · Luminous Efficacy (rated) (Nom) 129 lm/W
- · Color rendering index (CRI) 80
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Lamp cap/base | E10 |
|---|---|
| Width | 97 mm |
| Conductor cross section | 1.5 mm² |
| Outer diameter | - mm |
| Length | 1870 mm |
| Number of poles | 3 |
| Height/depth | 83 mm |
| Recess diameter | - mm |
| Power factor | 0.9 |
| Recess width | - mm |
| Stroboscope effect value SVM | 1.6 |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Unified Glare Rating (UGR) | 25 |
| Flickering value Pst LM | 1 |
| Max. number of luminaires per miniature circuit breaker B16 | 11 |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance (35,000 h at 25 °C) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Recess height/depth | - mm |
| Rated life time L70/B50 at 25 °C | 30000 h |
| Max. number of luminaires per miniature circuit breaker C16 | 18 |
| Maximum system power | 65 W |
| Recess length | - mm |
| Number of lamps | - |
| Lamp power | - - - W |
| Nominal voltage | 220 - 240 V |
| Colour temperature | 4000 - 4000 K |
| Nominal current | 290 - 290 mA |
| Rated ambient temperature acc. IEC62722-2-1 | -20 - 40 °C |
| With light sensor | No |
| Suitable for suspended mounting | Yes |
| With movement sensor | No |
| Light source included | Yes |
|---|---|
| Suitable for ceiling mounting | Yes |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Suitable for surface mounting | Yes |
| Control gear included | Yes |
| With air slots | No |
| Fit for workplace acc. EN 12464-1 | No |
| Luminaire may be covered with thermally insulating material | No |
| Suitable for recessed mounting | No |
| Suitable for light line configuration | No |
| Constant luminous flux control | No |
| Dimming potentiometer (integrated) | No |
| Dimming RF | No |
| Dimming DALI-2 | No |
| Dimming mains voltage modulation | No |
| Dimming programmable | No |
| Replaceable control gear | No |
| Dimming trailing edge | No |
| Dimming DSI | No |
| Dimming 0-10 V | No |
| IFTTT support available | No |
| Dimming touch and dim | No |
| Dimming 1-10 V | No |
| Dimming manufacturer's proprietary system | No |
| Dimming with push-button | No |
| Dimming Zigbee | No |
| Dimming leading edge | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Bluetooth operated | No |
| Dimming DALI | No |
| Suitable for emergency lighting | No |
| Dimming DMX | No |
