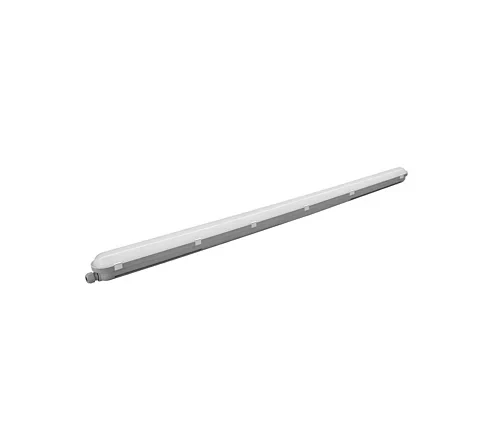

Ledinaire Waterproof 6ft Single 44W 4000K
Part Number:
2501305774
MPN:
911401825681
- Product Type:
- Batten Accessories
Please Log In
To view pricing, availability, and special offering, click the button below and log in.
Contact our Customer Support Team for assistance on this product
EA
Min: 1 EA
Technical Documents
Technical Documents
Product Documents
Technical Data Sheet
Technical Data Sheet
Technical Data Sheet
Product Details
Product Details
The Ledinaire Waterproof range provides maximum performance and durability at great value. As an off-the-shelf LED luminaire solution for all your everyday needs, it can be deployed in a wide variety of locations.
- · Correlated Color Temperature (Nom) 4000 K
- · Luminous Flux 4,400 lumen
- · Stroboscopic effect value (SVM) 1.6
- · Luminaire light beam spread 120 degree
Technical Specifications
Technical Specifications
Ceiling / wall luminaire | |
| Lamp cap/base | E10 |
|---|---|
| Outer diameter | - mm |
| Width | 97 mm |
| Length | 1870 mm |
| Power factor | 0.9 |
| Conductor cross section | 1.5 mm² |
| Height/depth | 83 mm |
| Flickering value Pst LM | 1 |
| Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Lumen maintenance (35,000 h at 25 °C) | - % |
| Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) | - % |
| Rated life time L70/B50 at 25 °C | 30000 h |
| Recess length | - mm |
| Maximum system power | 44 W |
| Recess height/depth | - mm |
| Number of lamps | - |
| Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Stroboscope effect value SVM | 1.6 |
| Unified Glare Rating (UGR) | 25 |
| Max. number of luminaires per miniature circuit breaker C16 | 24 |
| Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) | - % |
| Max. number of luminaires per miniature circuit breaker B16 | 15 |
| Number of poles | 3 |
| Recess diameter | - mm |
| Recess width | - mm |
| Lamp power | - - - W |
| Nominal voltage | 220 - 240 V |
| Nominal current | 205 - 205 mA |
| Colour temperature | 4000 - 4000 K |
| Rated ambient temperature acc. IEC62722-2-1 | -20 - 40 °C |
| Suitable for suspended mounting | Yes |
| With light sensor | No |
| Light source included | Yes |
| Luminaire may be covered with thermally insulating material | No |
|---|---|
| Suitable for ceiling mounting | Yes |
| Suitable for light line configuration | No |
| Fit for workplace acc. EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| With movement sensor | No |
| Luminaire with limited surface temperature, class "D“ in acc. with EN 60598-2-24 | No |
| Suitable for recessed mounting | No |
| Replaceable control gear | No |
| Dimming DSI | No |
| Control gear included | Yes |
| Dimming Zigbee | No |
| Compatible with Google Assistant | No |
| Compatible with Apple HomeKit | No |
| Dimming 1-10 V | No |
| Suitable for emergency lighting | No |
| With air slots | No |
| Dimming touch and dim | No |
| Dimming 0-10 V | No |
| Dimming DALI-2 | No |
| Dimming leading edge | No |
| Dimming with push-button | No |
| Dimming trailing edge | No |
| Dimming RF | No |
| Constant luminous flux control | No |
| Dimming programmable | No |
| Dimming manufacturer's proprietary system | No |
| Dimming DMX | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Dimming potentiometer (integrated) | No |
| Dimming DALI | No |
| Bluetooth operated | No |
| Dimming mains voltage modulation | No |
